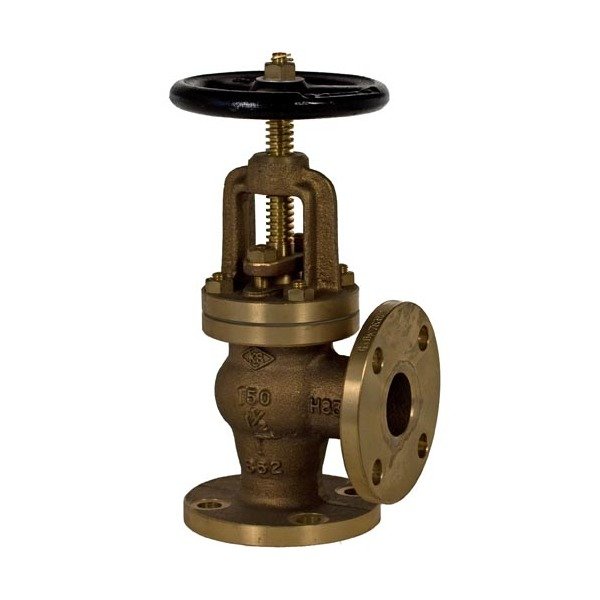

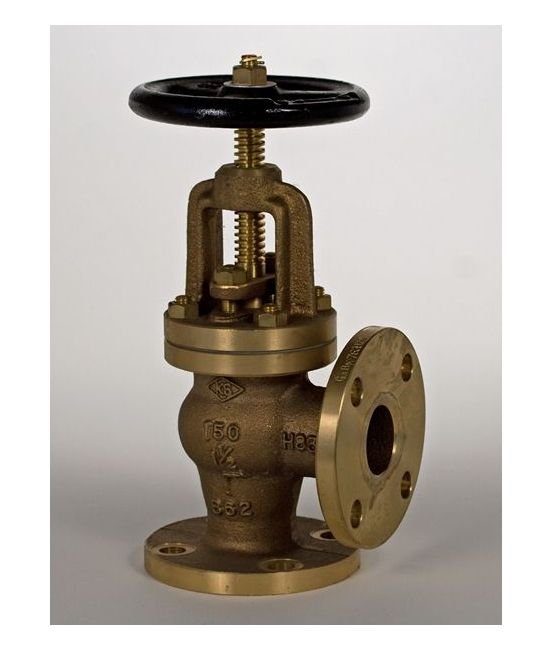

The Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y, SDNR is expertly crafted with a Bronze body, Brass seat, and Bronze or Stainless Steel disc material, ensuring durability and reliability in industrial settings. This valve boasts Hydraulic Inspection capabilities of 350 PSIG for the shell and 225 PSIG for the seat, meeting stringent performance requirements. With ANSI B16.10 face-to-center alignment and ANSI B16.24 Class 150 flanges, this valve guarantees seamless integration and optimal performance, making it ideal for critical applications.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

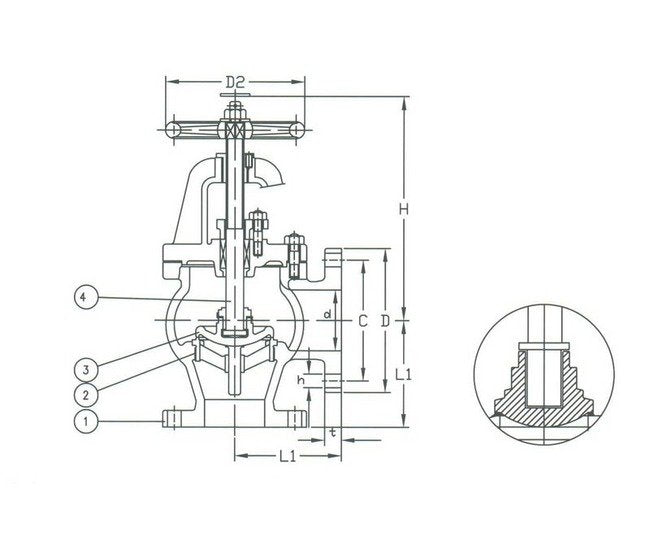

Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
6"
Specifications Stem Material
Brass
Specifications T
0.81 in | 21 mm
Specifications Weight
154 lb | 70.0 kg
