Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, SDNR - 3/4"
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, SDNR - 3/4"
SKU:VAL-6fbfb3
High-quality Class 150 Bronze Angle Valve for precise flow control in industrial settings. ANSI compliant with durable Bronze construction.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, SDNR - 3/4"
$189.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, SDNR - 3/4"
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet features a robust construction with Bronze Body, Brass Seat, and versatile Disc Material options in Bronze or Stainless Steel, ensuring durability and corrosion resistance. Equipped with Handwheel Actuators and Flanged Drilled Connections, this valve offers reliable performance under high-pressure applications. Compliant with ANSI standards, this valve is ideal for industrial and institutional settings requiring precise flow control and hydraulic integrity.

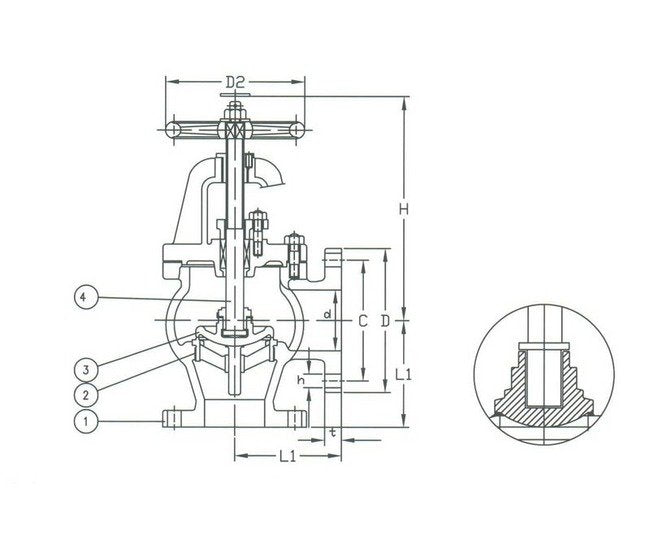

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
2.75 in
Specifications Connection
Flanged Drilled
Specifications D
3.88 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
2.50 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3/4"
Specifications Stem Material
Brass
