Class 150 Bronze Angle Valve - OS&Y, Regular
Class 150 Bronze Angle Valve - OS&Y, Regular
SKU:VAL-4de9db
Premium Class 150 Bronze Angle Valve - Ideal for ANSI applications
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - OS&Y, Regular
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - OS&Y, Regular
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet features a durable Bronze body and Brass seat for reliable performance. The Stainless Steel or Brass Disc Ring ensures long-term corrosion resistance. With ANSI B16.24 Class 150 flanges, this valve is designed for hydraulic pressures up to 350 PSIG. The handwheel Actuator allows for easy manual operation, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?

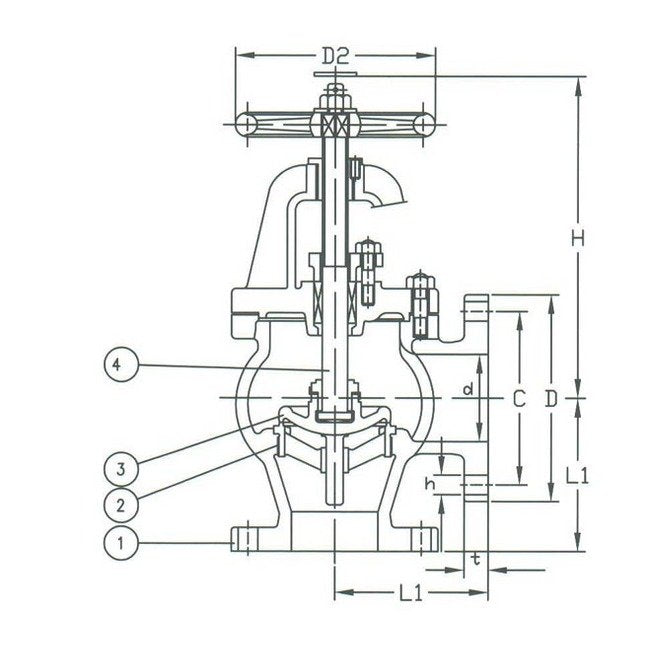

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.00 in | 178 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
