Class 150 Bronze Angle Valve - OS&Y, SDNR
Class 150 Bronze Angle Valve - OS&Y, SDNR
SKU:VAL-514523
High-performance Class 150 Bronze Angle Valve for industrial hydraulic applications. Bronze body, brass seat, and OS&Y design ensure durability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - OS&Y, SDNR
$349.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - OS&Y, SDNR
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet, OS&Y, SDNR design is meticulously crafted for reliable performance. Constructed with high-quality bronze body, brass seat, and stainless steel or bronze disc materials, it ensures durability and longevity in industrial applications. This valve meets ANSI B16.10 face-to-center standards and ANSI B16.24 Class 150 flange requirements, making it ideal for precise hydraulic control in critical environments.
Ready to Grow Without Cash Flow Constraints?

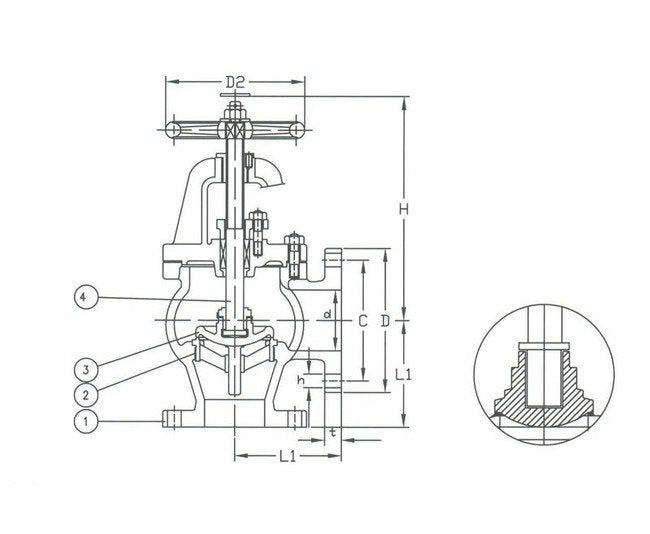

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.75 in | 121 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.63 in | 16 mm
Specifications Weight
44 lb | 24.0 kg
