Class 150 Bronze Angle Valve - OS&Y, SDNR - Bolted Bonnet
Class 150 Bronze Angle Valve - OS&Y, SDNR - Bolted Bonnet
SKU:VAL-15eaa0
Durable Class 150 Bronze Angle Valve with OS&Y, SDNR for industrial use. Meets ANSI standards for reliable performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - OS&Y, SDNR - Bolted Bonnet
$899.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - OS&Y, SDNR - Bolted Bonnet
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet features a durable Bronze body, ensuring robust performance in industrial settings. The OS&Y design enhances safety by providing visual valve status indication, while the SDNR feature aids in preventing backflow. With components crafted from materials such as Stainless Steel and Brass, this valve meets ANSI standards, providing reliable hydraulic performance. Its handwheel actuators allow for manual operation, making it versatile for various applications.

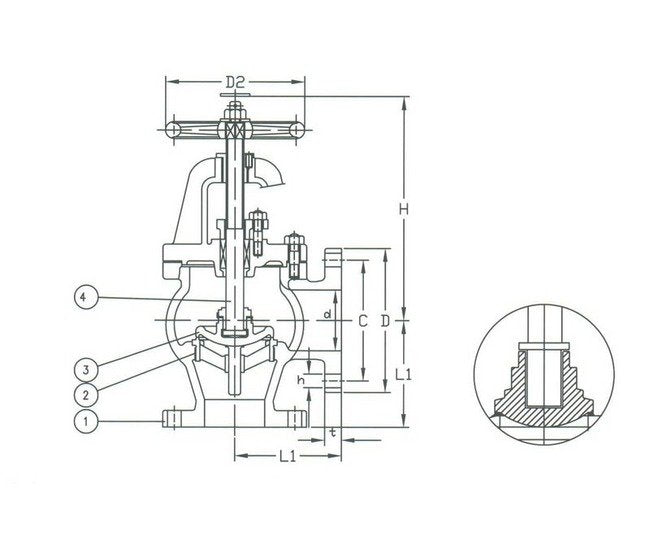

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.00 in | 229 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
8"
Specifications Stem Material
Stainless Steel
Specifications T
0.94 in | 24 mm
Specifications Weight
266 lb | 121 kg
