Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-82c887
High-quality Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y, SDNR - ANSI standard compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$249.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet, Outside Screw and Yoke (OS&Y), and SDNR (Screw Down Non-Return) functionality is a robust and reliable solution for fluid control. Crafted from high-quality bronze and stainless steel materials, this valve ensures durability and corrosion resistance. With precise specifications meeting ANSI standards, including a pressure rating of 350 PSIG for hydraulic inspection, this valve offers optimal performance in industrial settings. The handwheel actuator provides easy manual operation, while the flanged connection simplifies installation. Trust in this valve for efficiency, quality, and compliance with industry requirements.
Ready to Grow Without Cash Flow Constraints?

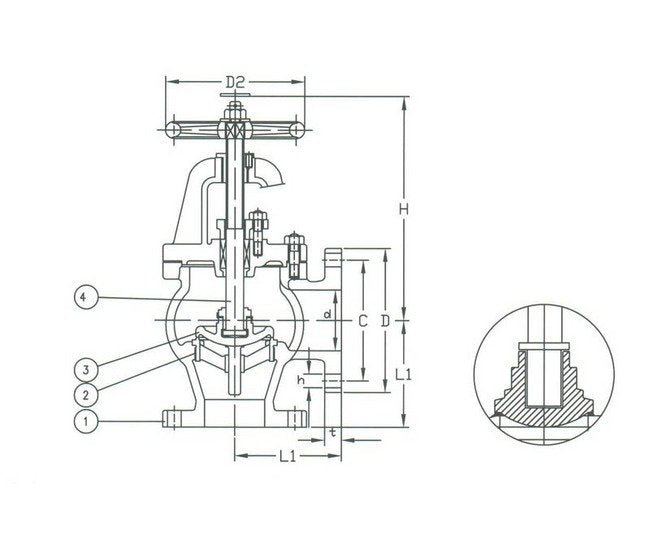

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.75 in | 121 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
3"
Specifications Stem Material
Stainless Steel
Specifications T
0.63 in | 16 mm
Specifications Weight
44 lb | 24.0 kg
