Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-b27172
Durable Class 150 Bronze Angle Valve - Ideal for industrial applications
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a robust and reliable valve designed for heavy-duty industrial applications. Crafted from high-quality bronze with stainless steel components for enhanced durability, this valve ensures long-lasting performance. With a hydraulic inspection shell rating of 350 PSIG and seat rating of 225 PSIG, it guarantees efficient operation. Featuring ANSI B16.10 compliance and flanges according to ANSI B16.24 Class 150 standards, this valve meets the stringent requirements of institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?

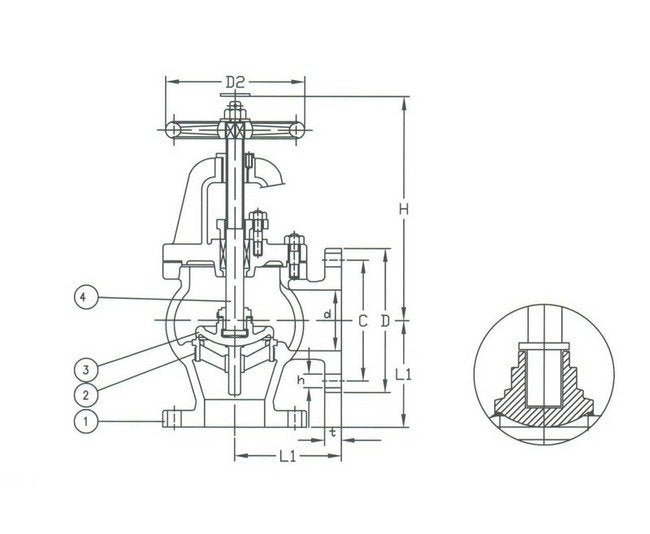

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.75 in | 146 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
4"
Specifications Stem Material
Stainless Steel
Specifications T
0.69 in | 18 mm
Specifications Weight
84 lb | 38.0 kg
