Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-f0e68d
Durable Class 150 Bronze Angle Valve with Bolted Bonnet - Ideal for industrial use
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$349.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is a robust and reliable valve designed for industrial applications. Crafted from high-quality bronze, brass, and stainless steel materials, this valve ensures durability and resistance to corrosion. With a 5" size and ANSI B16.24 Class 150 flanges, it offers hydraulic inspection at 350 PSIG (Shell) and 225 PSIG (Seat). The handwheel actuator allows for easy operation, making it ideal for a wide range of settings. Compliant with ANSI standards, this valve guarantees performance and longevity in demanding environments.
Ready to Grow Without Cash Flow Constraints?

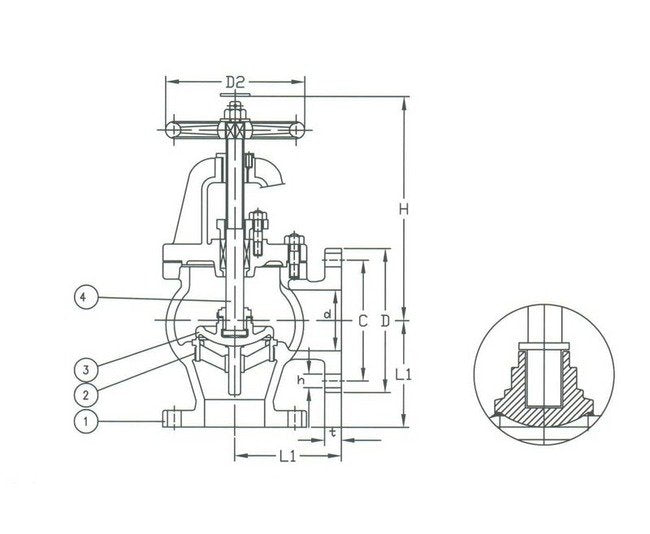

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.00 in | 178 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
