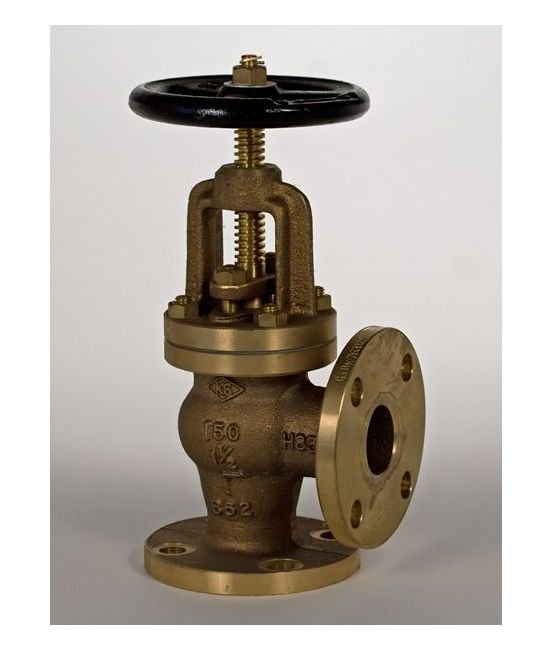

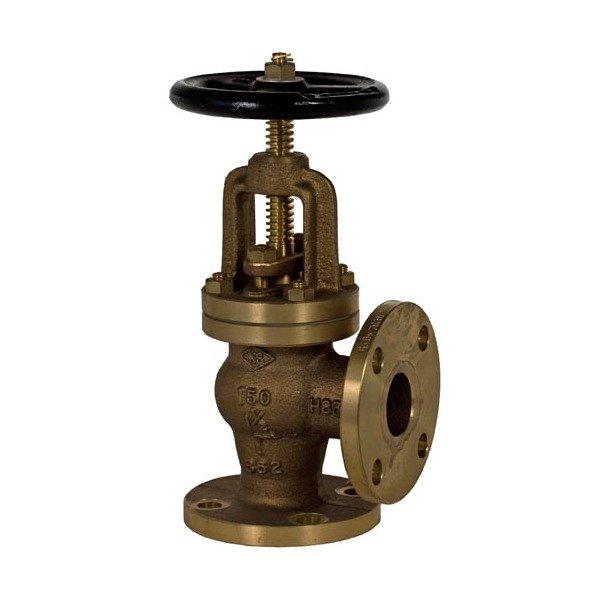

The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a high-quality industrial valve designed for durability and precision. Constructed with bronze body, brass seat, and bronze or stainless steel disc materials, this valve ensures reliable performance in demanding environments. It features a handwheel actuator for easy operation, flanged connection for secure installation, and meets ANSI B16.10 and B16.24 Class 150 standards.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

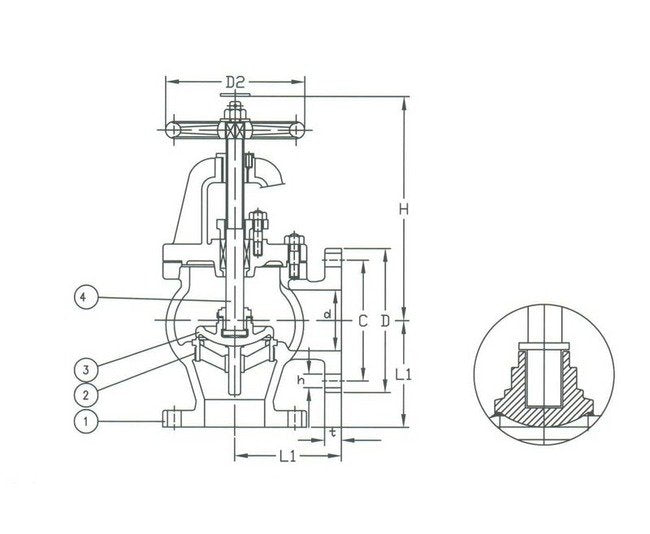

Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.00 in | 229 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
8"
Specifications Stem Material
Brass
Specifications T
0.94 in | 24 mm
Specifications Weight
266 lb | 121 kg
