Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-e44c52
High-quality Class 150 Bronze Angle Valve with Bolted Bonnet - Built to Last & Perform, ANSI Standards Compliant
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a reliable and durable valve suitable for various applications. Constructed with high-quality materials including bronze body, brass seat, and stainless steel disc, this valve ensures longevity and optimal performance. Designed to meet ANSI B16.10 face-to-center and ANSI B16.24 Class 150 flange standards, it guarantees seamless integration into existing systems. With features like Hydraulic Inspection up to 350 PSIG shell pressure and 225 PSIG seat pressure, this valve offers efficient operation and safety. Ideal for both consumer and institutional buyers seeking quality and compliance.

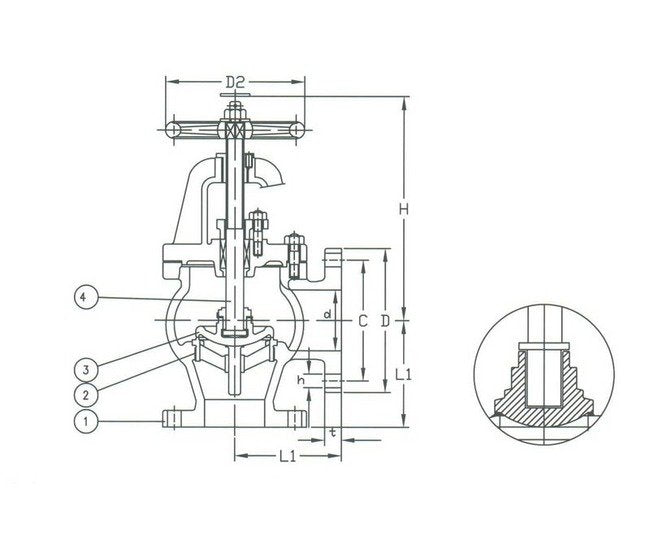

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.75 in | 146 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.69 in | 18 mm
Specifications Weight
84 lb | 38.0 kg
