Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-b098f9
Premium Class 150 Bronze Angle Valve with Bolted Bonnet, ANSI compliant, for durable and safe fluid control.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$269.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is a reliable solution for fluid control applications. Constructed with premium materials including Bronze body, Stainless Steel seat, and Bronze or Stainless Steel disc ring, this valve ensures durability and corrosion resistance. Designed for ANSI standards, featuring a handwheel actuator for easy operation. With hydraulic inspections exceeding industry requirements, this valve offers peace of mind in performance and safety.
Ready to Grow Without Cash Flow Constraints?

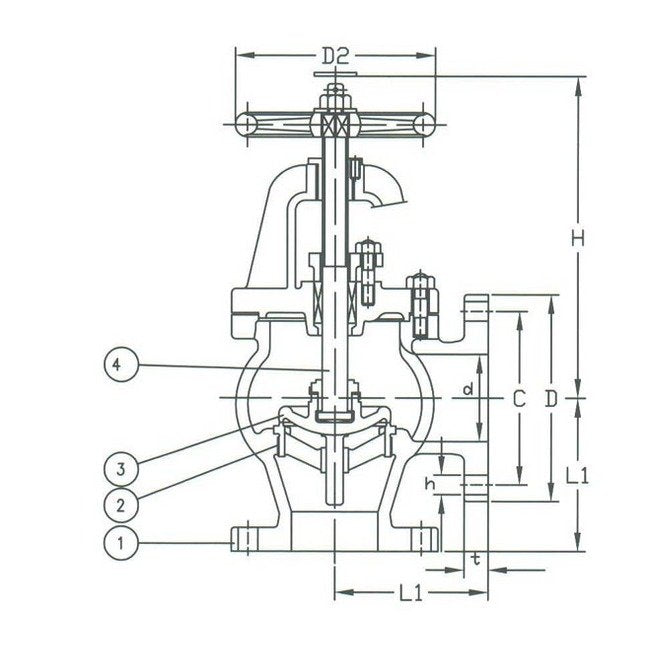

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
7.50 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
12.00 in | 305 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.25 in | 108 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
2-1/2"
Specifications Stem Material
Stainless Steel
Specifications T
0.56 in | 14 mm
Specifications Weight
44 lb | 20.0 kg
