Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-5aa1a8
Premium Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR, ensures top-notch performance and durability. Meets ANSI standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$99.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a top-of-the-line valve designed for exceptional performance. Crafted with a bronze body, brass seat, and a choice of bronze or stainless steel disc, this valve ensures durability and reliability in demanding applications. Its hydraulic inspections at 350 PSIG for the shell and 225 PSIG for the seat guarantee safety and quality. With ANSI B16.10 face to center alignment and ANSI B16.24 Class 150 flanges, this valve meets rigorous industry standards, making it ideal for both consumer and institutional use.

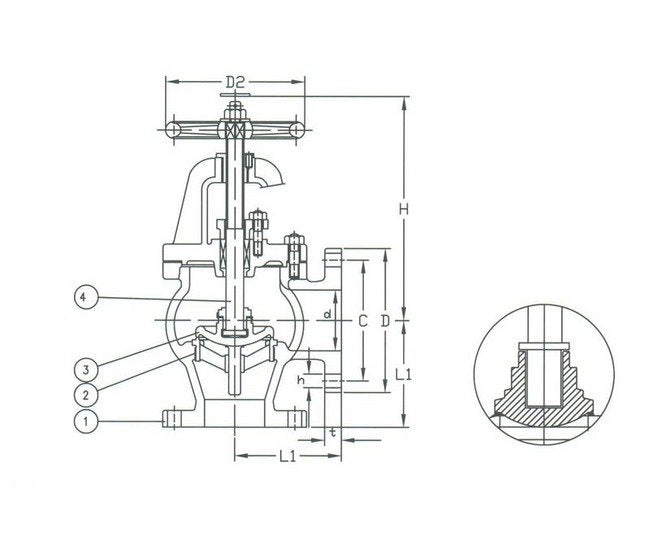

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
2.38 in
Specifications Connection
Flanged Drilled
Specifications D
3.50 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
2.25 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
1/2"
Specifications Stem Material
Brass
