Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-8ab891
Premium Class 150 Bronze Angle Valve for reliable fluid control. Durable construction, easy operation, and exceeds industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$129.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is a premium-quality valve designed for efficient fluid control in various applications. Constructed with durable bronze body, brass seat, and bronze/stainless steel disc, this valve ensures long-term reliability. The handwheel actuator provides ease of operation, and the flanged connection meets ANSI B16.24 Class 150 standards. With hydraulic inspections exceeding industry requirements, this valve guarantees performance and safety.
Ready to Grow Without Cash Flow Constraints?

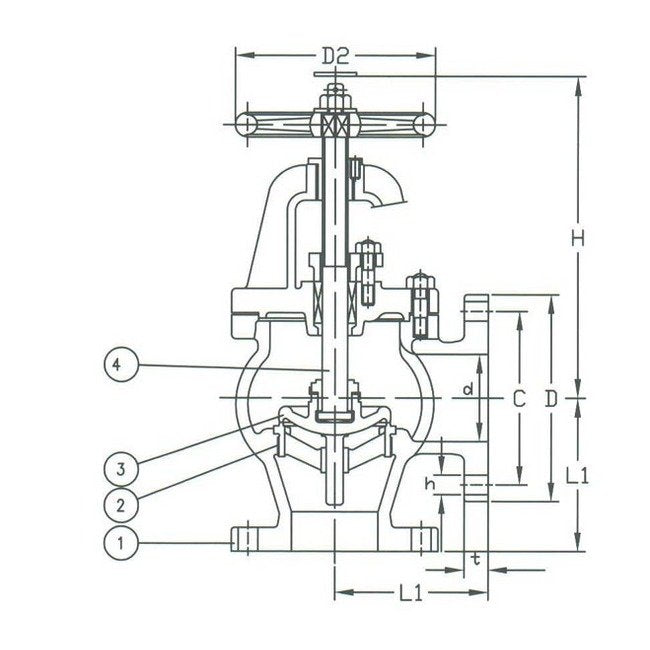

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
3.50 in
Specifications Connection
Flanged Drilled
Specifications D
4.63 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
3.00 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
1-1/4"
Specifications Stem Material
Brass
