Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-62a86c
Durable Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y, ANSI B16.10/B16.24 Compliant
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is a robust and reliable valve suitable for various applications. Constructed with high-quality materials like bronze and stainless steel, it offers durability and resistance to corrosion. This valve features a bolted bonnet design for secure sealing, an OS&Y configuration for easy visibility of stem position, and complies with ANSI B16.10 and B16.24 Class 150 standards. With hydraulic inspections exceeding industry requirements, this valve ensures safety and efficiency in fluid control.
Ready to Grow Without Cash Flow Constraints?

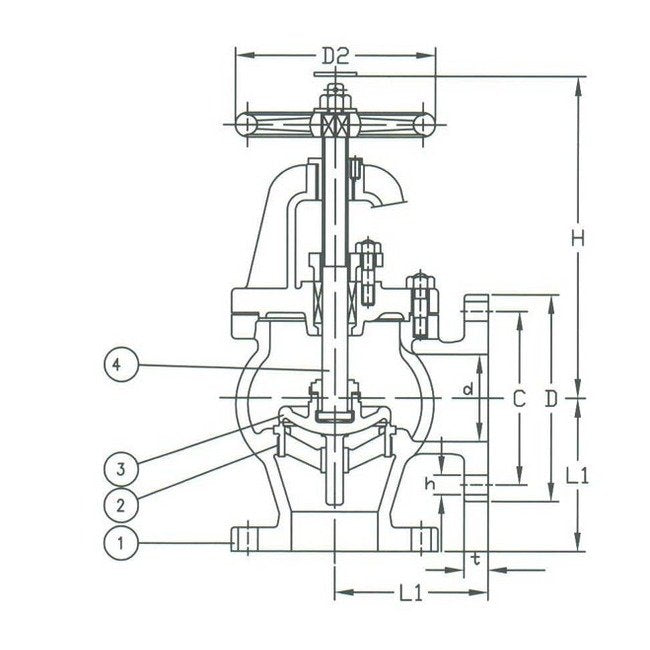

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.75 in | 146 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.69 in | 18 mm
Specifications Weight
84 lb | 38.0 kg
