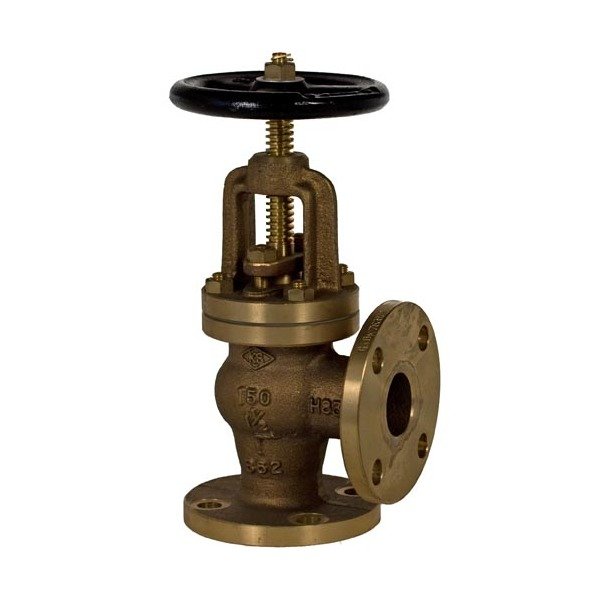

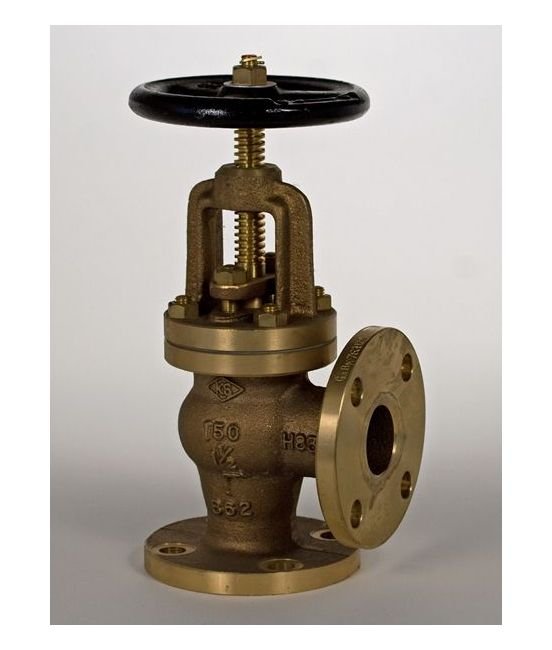

Class 150 Bronze Angle Valve with Bolted Bonnet

Name: Class 150 Bronze Angle Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-182209
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-182209

High-quality Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR for industrial use. 350 PSIG shell rating, ANSI compliant, easy to install.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a high-quality valve designed for industrial applications. Constructed with bronze body, stainless steel seat and disc materials, and stainless steel stem, this valve ensures durability and longevity. With a hydraulic inspection shell rating of 350 PSIG and seat rating of 225 PSIG, it offers reliable performance under pressure. The handwheel actuators provide easy manual operation, while the flanged drilled connection makes installation convenient. Compliant with ANSI standards, this valve is ideal for both consumer and institutional buyers seeking top-notch quality and performance.

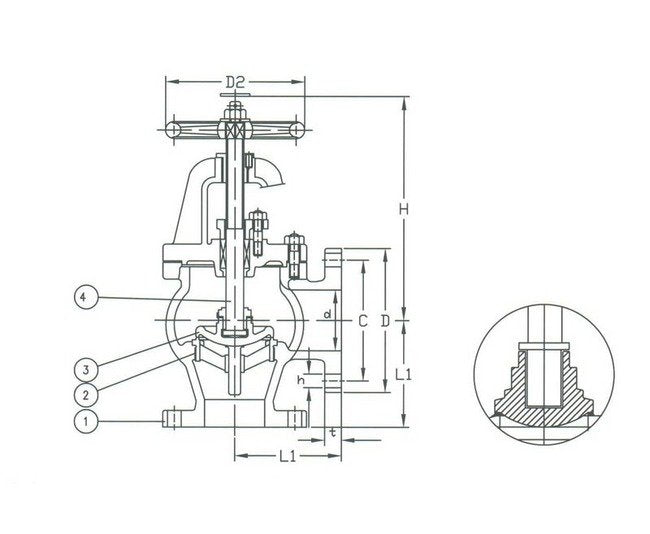

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

5.500 in | 140 mm

Specifications Connection

Flanged Drilled

Specifications D

7 in | 178 mm

Specifications D2

7.50 in | 191 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

12.00 in | 305 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

4.25 in | 108 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

2-1/2"

Specifications Stem Material

Stainless Steel

Specifications T

0.56 in | 14 mm

Specifications Weight

44 lb | 20.0 kg
