Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-b31dd7
Durable Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular for reliable performance in industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$349.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular offers superior performance and durability for both consumer and institutional applications. Constructed with high-quality bronze body, brass seat, and bronze/stainless steel disc materials, this valve ensures reliable operation. With compliance to ANSI B16.10 and ANSI B16.24 Class 150 standards, it provides a hydraulic inspection shell pressure of 350 PSIG and seat pressure of 225 PSIG, making it ideal for a wide range of industrial uses.
Ready to Grow Without Cash Flow Constraints?

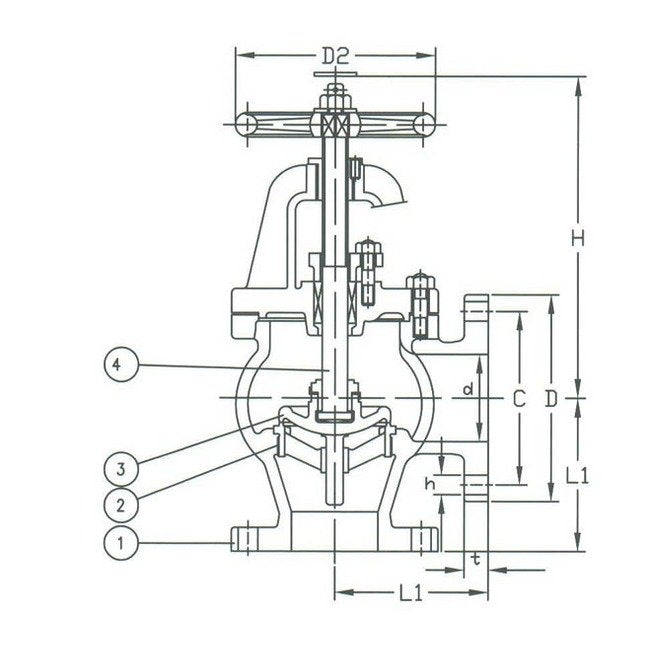

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.75 in | 121 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.63 in | 16 mm
Specifications Weight
44 lb | 24.0 kg
