Class 150 Bronze Angle Valve with Bolted Bonnet

Name: Class 150 Bronze Angle Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-43ab5d
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-43ab5d

Premium Class 150 Bronze Angle Valve - Ideal for varied applications - ANSI Compliant - Superior Quality

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a reliable choice for both consumer and institutional buyers. Crafted with precision, the bronze body, brass seat, and brass stem ensure durability and longevity. This valve, compliant with ANSI standards and featuring a handwheel actuator, provides secure and efficient flow control in various applications. With hydraulic inspections exceeding industrial standards, this valve offers superior performance under pressure, making it an ideal choice for critical environments.

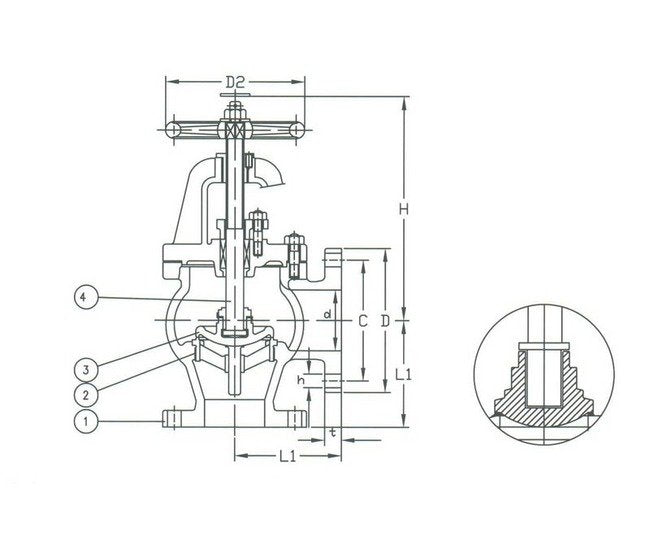

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

3.88 in | 99 mm

Specifications Connection

Flanged Drilled

Specifications D

5 in | 127 mm

Specifications D2

5.00 in | 127 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

9.00 in | 229 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

3.25 in | 83 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

1-1/2"

Specifications Stem Material

Brass

Specifications T

0.44 in | 11 mm

Specifications Weight

22 lb | 10.0 kg

Class 150 Bronze Angle Valve with Bolted Bonnet
