Class 150 Bronze Angle Valve with Bolted Bonnet
Class 150 Bronze Angle Valve with Bolted Bonnet
SKU:VAL-14487c
Premium Class 150 Bronze Angle Valve - Durable, Reliable, High Performance
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet
$299.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR is a superior choice for both consumer and institutional buyers. Crafted with a Bronze body, Brass seat, and Bronze or Stainless Steel disc materials, this valve ensures durability and reliability. Featuring ANSI B16.10 conformity for face to center distance and ANSI B16.24 Class 150 flanges, it meets high industry standards. With hydraulic inspections exceeding 200 PSIG, this valve offers exceptional performance under pressure, making it ideal for a wide range of applications.

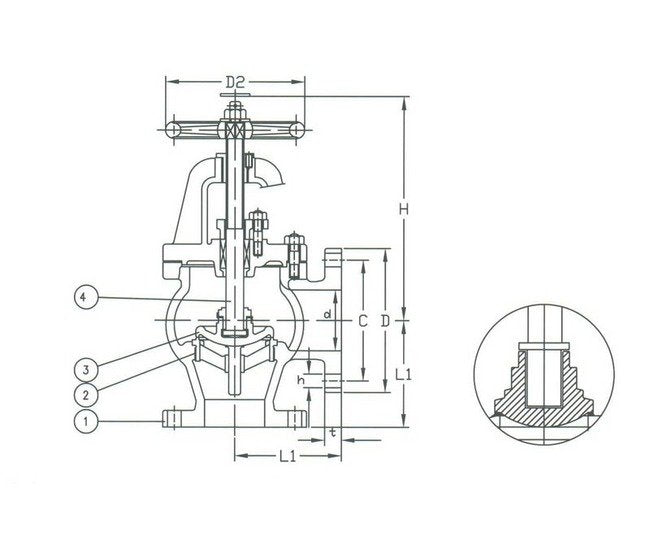

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.00 in | 102 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2"
Specifications Stem Material
Brass
Specifications T
0.50 in | 13 mm
Specifications Weight
33 lb | 15.0 kg
