Class 150 Bronze Angle Valve with Bolted Bonnet OS&Y
Class 150 Bronze Angle Valve with Bolted Bonnet OS&Y
SKU:VAL-0edd7a
High-quality Class 150 Bronze Angle Valve for industrial applications. Compliant with ANSI standards. Reliable and durable design.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet OS&Y
$249.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet OS&Y
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet featuring OS&Y design is a reliable and durable choice for industrial applications. Constructed with high-quality Bronze body, Brass seat, and Bronze or Stainless Steel disc materials, this valve ensures efficient performance in demanding environments. With compliance to ANSI standards and a pressure rating of 350 PSIG for hydraulic inspection, this valve guarantees safety and precision in fluid control operations. The handwheel actuator and flanged connection offer ease of operation and installation, making it ideal for institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?

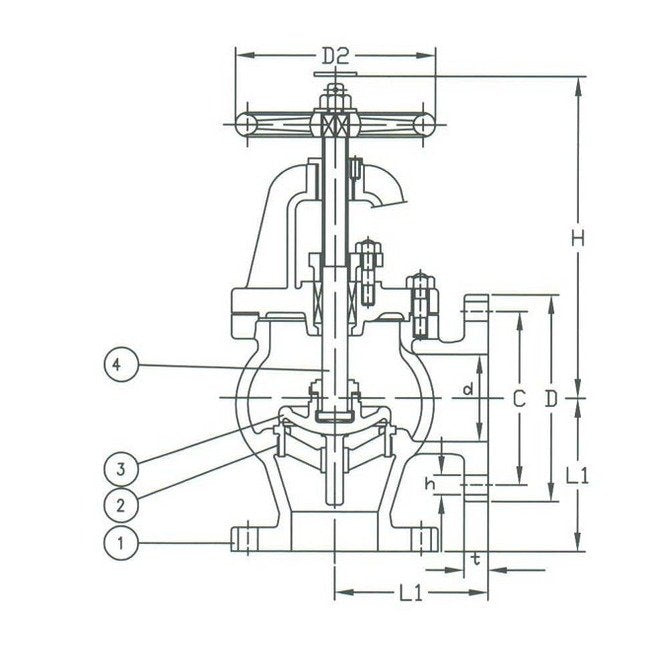

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
7.50 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
12.00 in | 305 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.25 in | 108 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2-1/2"
Specifications Stem Material
Brass
Specifications T
0.56 in | 14 mm
Specifications Weight
44 lb | 20.0 kg
