Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y - 1/2"
Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y - 1/2"
SKU:VAL-a6ddb0
High-performance Class 150 Bronze Angle Valve for precise industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y - 1/2"
$89.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y - 1/2"
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y features a durable bronze body and brass seat for reliable performance. Its stainless steel or bronze disc and brass stem ensure longevity under high pressure. This valve meets ANSI B16.10 face-to-center standards and ANSI B16.24 Class 150 flange requirements, making it ideal for industrial applications requiring precision and robust construction.
Ready to Grow Without Cash Flow Constraints?

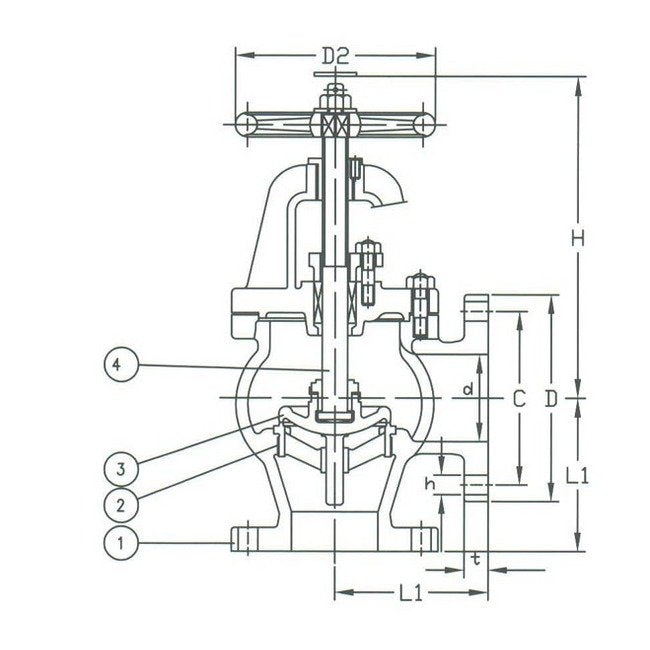

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
2.38 in
Specifications Connection
Flanged Drilled
Specifications D
3.50 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
2.25 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
1/2"
Specifications Stem Material
Brass
