Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 5"
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 5"
SKU:VAL-df15d4
Durable Class 150 Bronze Angle Valve for high-pressure applications with stainless steel components. Conforms to ANSI standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 5"
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 5"
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet features a durable bronze body with stainless steel seat, disc, and stem materials for enhanced corrosion resistance. This valve is meticulously engineered to meet ANSI B16.10 standards, ensuring reliable performance in high-pressure applications. With hydraulic inspection ratings of 350 PSIG for shell and 225 PSIG for seat, this valve offers exceptional safety and efficiency. The handwheel actuators provide ease of operation, while the flanged connection allows for simple installation. Ideal for institutional settings requiring precision and durability.
Ready to Grow Without Cash Flow Constraints?

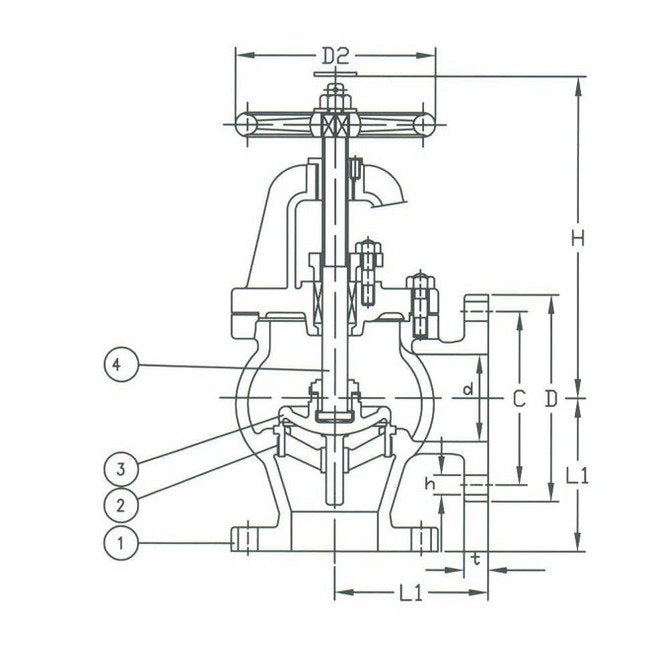

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.00 in | 178 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
5"
Specifications Stem Material
Stainless Steel
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
