Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 8"
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 8"
SKU:VAL-efd6a3
High-performance Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular for industrial fluid control. ANSI B16.10 & B16.24 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 8"
$899.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, Regular - 8"
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is an essential component for fluid control systems, crafted with durable bronze body and stainless steel components, ensuring longevity and reliable performance. Featuring hydraulic inspection ratings of 350 PSIG for the shell and 225 PSIG for the seat, this valve meets ANSI B16.10 face-to-center and ANSI B16.24 Class 150 flange standards. With a precision-engineered design and handwheel actuator, this valve offers smooth operation and precise control in industrial settings.
Ready to Grow Without Cash Flow Constraints?

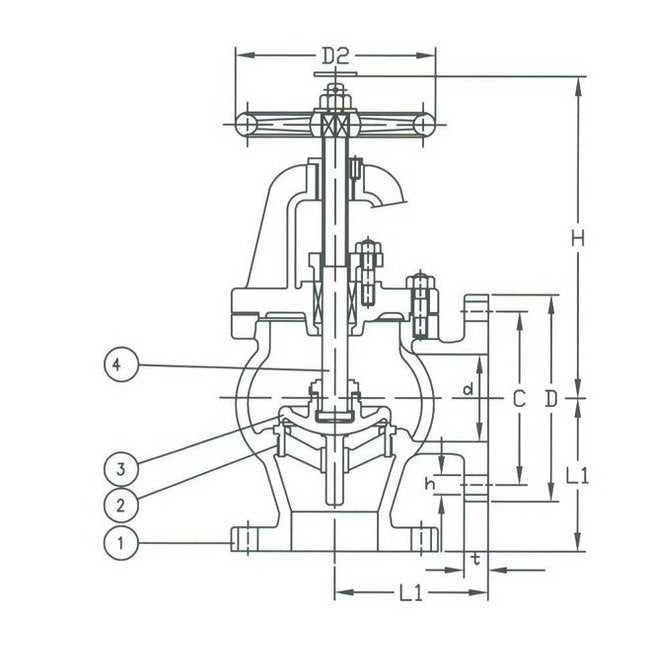

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.00 in | 229 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
8"
Specifications Stem Material
Stainless Steel
Specifications T
0.94 in | 24 mm
Specifications Weight
266 lb | 121 kg
