Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR
SKU:VAL-f18421
Reliable Class 150 Bronze Angle Valve with Bolted Bonnet - Ideal for industrial use. Bronze body, Brass stem, ANSI B16.10 & B16.24 standards compliant.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR
$99.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y, SDNR
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet ensures reliable fluid control in industrial applications. Crafted with high-quality Bronze body, Brass stem, and options for Bronze or Stainless Steel seat/disc materials, this valve guarantees durability and corrosion resistance. With ANSI B16.10 face-to-center alignment and ANSI B16.24 Class 150 flanges, it meets stringent industry standards for performance and safety. Suitable for hydraulic systems, this valve boasts a hydraulic inspection shell pressure of 350 PSIG and seat pressure of 225 PSIG, making it a dependable choice for institutional and government procurement needs.

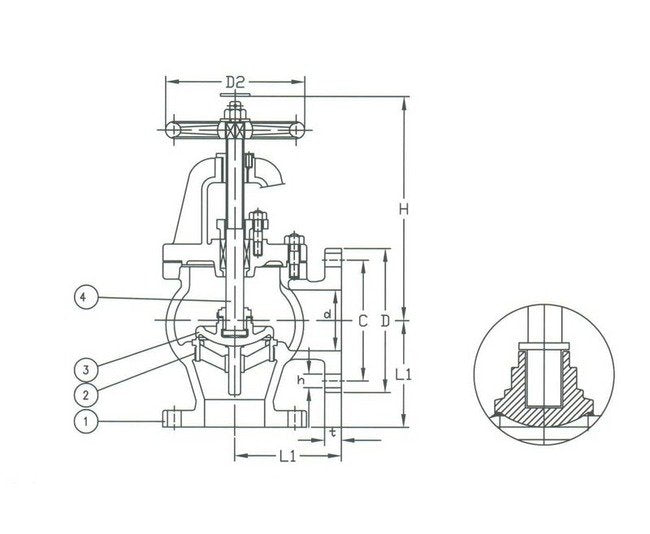

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
3.13 in
Specifications Connection
Flanged Drilled
Specifications D
4.25 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
2.75 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
1"
Specifications Stem Material
Brass
