Class 150 Bronze Gate Valve

Class 150 Bronze Gate Valve

VAL-47a358

Reliable Class 150 Bronze Gate Valve for precise flow control in various applications.

$89.99
$89.99
Sale

Initiate Order

Class 150 Bronze Gate Valve

Class 150 Bronze Gate Valve

$89.99

Quantity: 1

Claim Your Seller Account

Class 150 Bronze Gate Valve

Class 150 Bronze Gate Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Class 150 Bronze Gate Valve is a reliable and durable solution for fluid control applications. Constructed with cast bronze components including body, bonnet, stem, and disc, this valve ensures long-lasting performance. Featuring a Screw-In-Bonnet design with a Rising Stem and Solid Wedge Disc, it offers secure sealing and precise flow control. With a pressure rating of up to 150 PSI for fluid and steam applications and 300 PSI for cold water, oil, or gas, this valve meets stringent industry standards for reliability and efficiency.

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc Cast Bronze (ASTM B62) 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/2 – 1) Zinc Die-Cast (B86) (11/4 – 3) Aluminum Die-cast (B85) 10 Wheel Nut Brass Rod (B16) 16 Name Plate Aluminum
Specifications Approx Net Wt
3.88
Specifications Carton Qty
16
Specifications Class
C150L

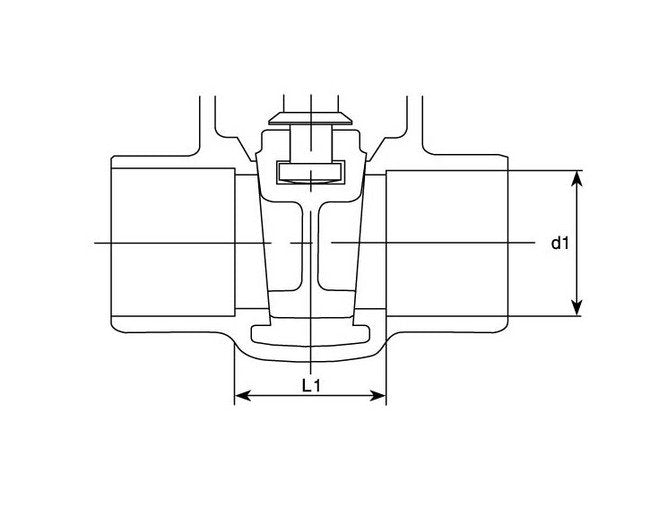

Specifications Dimension D1
3.15
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
8.50
Specifications Dimension L
2.68
Specifications Dimension L1
1.29
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Fluid to 406°F | 150 PSI - Saturated Steam to 366°F | 300 PSI - Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 2 Military MSS SP-80, TYPE 2
