Class 150 Bronze Globe Valve, 1-1/2"

Name: Class 150 Bronze Globe Valve, 1-1/2"
Brand: World Wide Metric, Inc.
SKU: VAL-a60d8f
Price: 159.99 USD
Availability: OutOfStock

SKU:VAL-a60d8f

Premium Class 150 Bronze Globe Valve, ideal for high-pressure applications. Durable and efficient design with precise control.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

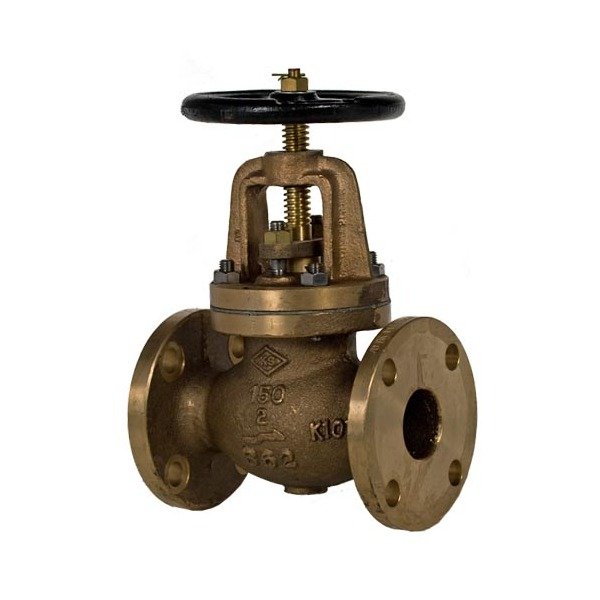

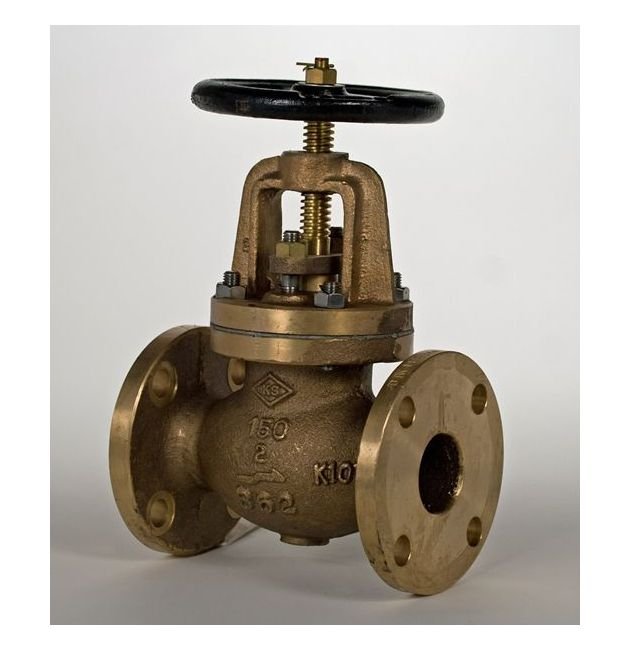

The Class 150 Bronze Globe Valve is a reliable solution designed for optimal performance. Crafted from high-quality bronze body, brass seat, and bronze or stainless steel disc, this valve ensures durability and precise operation. With ANSI B 16.10 face to face and ANSI B 16.24 flanges standards, it guarantees compatibility and efficiency in various applications. Featuring a bolted bonnet and OS&Y design, this valve is suitable for handling pressures up to 350 PSIG, making it ideal for industrial use. The handwheel actuator provides convenient manual control, while the flanged connection offers easy installation.

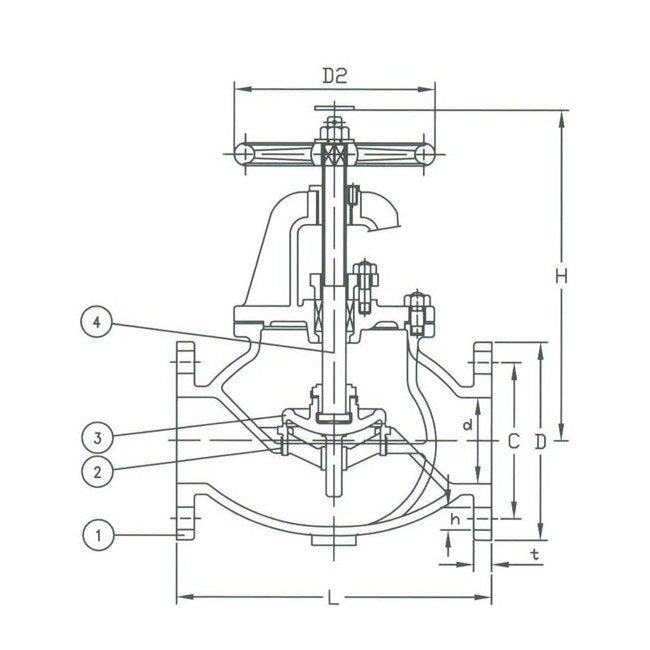

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

3.88 in | 99 mm

Specifications Connection

Flanged Drilled

Specifications D

5 in | 127 mm

Specifications D2

5.00 in | 127 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

9.00 in | 229 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

6.50 in | 165 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

1-1/2"

Specifications Stem Material

Brass

Specifications T

0.44 in | 11 mm

Specifications Weight

15 lb | 7.0 kg
