Class 150 Bronze Globe Valve, 2-1/2", Flanged Drilled
Class 150 Bronze Globe Valve, 2-1/2", Flanged Drilled
SKU:VAL-a4748d
Durable Class 150 Bronze Globe Valve with ANSI compliance. Ideal for various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, 2-1/2", Flanged Drilled
$299.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, 2-1/2", Flanged Drilled
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

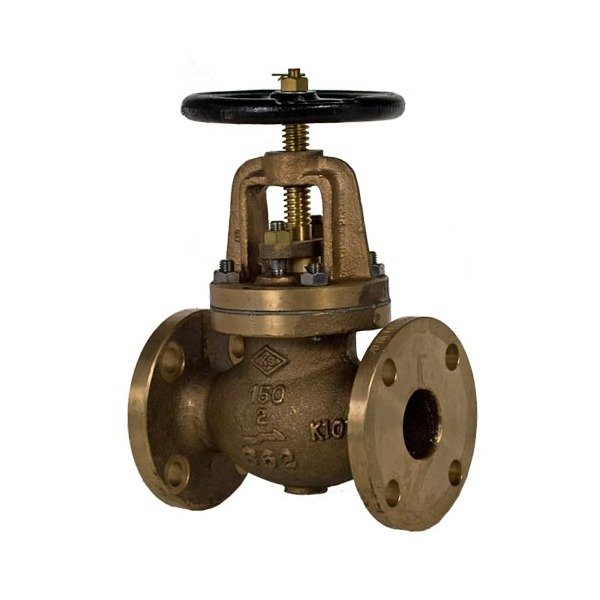

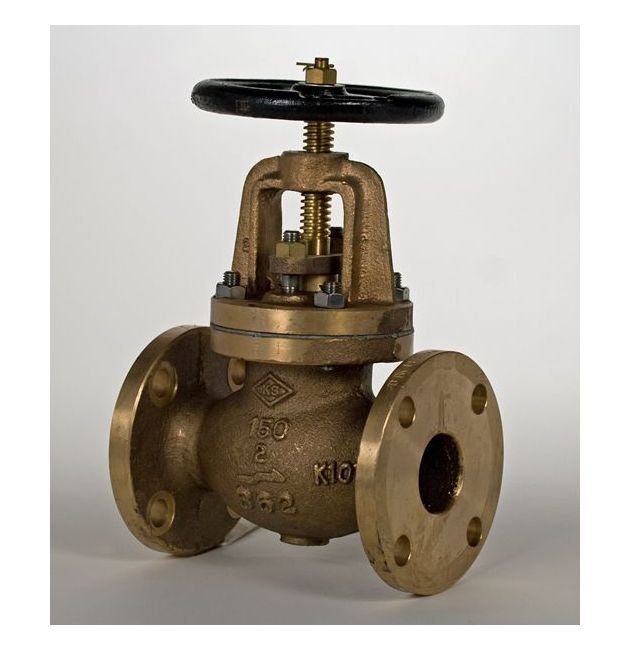

The Class 150 Bronze Globe Valve is a robust and reliable valve suitable for a wide range of applications. Crafted with a bronze body, brass seat, and options for bronze or stainless steel disc rings, this valve ensures durability and corrosion resistance. With compliance to ANSI B 16.10 and B 16.24 Class 150 standards, along with precise hydraulic inspections at 350 PSIG for the shell and 225 PSIG for the seat, this valve guarantees exceptional performance and safety. The handwheel actuator allows for easy operation, making it ideal for both consumer and institutional needs.

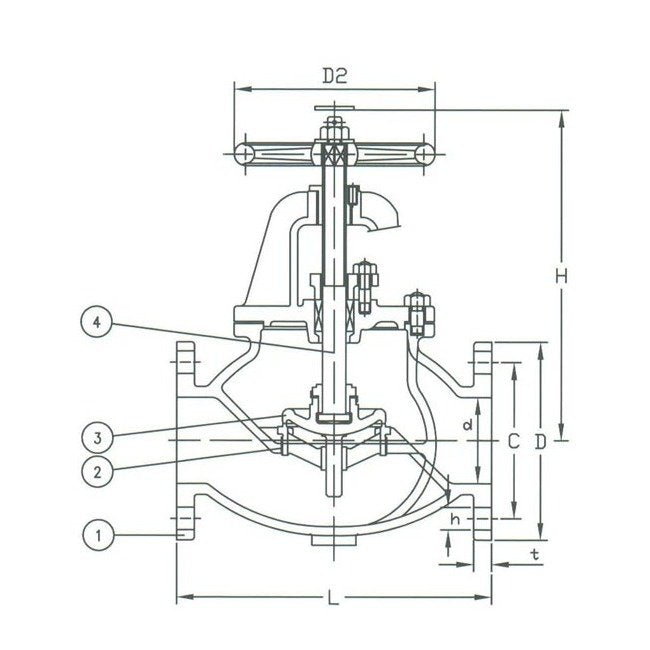

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
7.50 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
12.00 in | 305 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8.5 in | 216 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2-1/2"
Specifications Stem Material
Brass
Specifications T
0.56 in | 14 mm
Specifications Weight
37 lb | 17.0 kg
