Class 150 Bronze Globe Valve - 4" ANSI, Flanged, Handwheel
Class 150 Bronze Globe Valve - 4" ANSI, Flanged, Handwheel
SKU:VAL-c31ac8
High-performance 4" Class 150 Bronze Globe Valve for ANSI applications, ensuring safety and reliability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve - 4" ANSI, Flanged, Handwheel
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve - 4" ANSI, Flanged, Handwheel
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

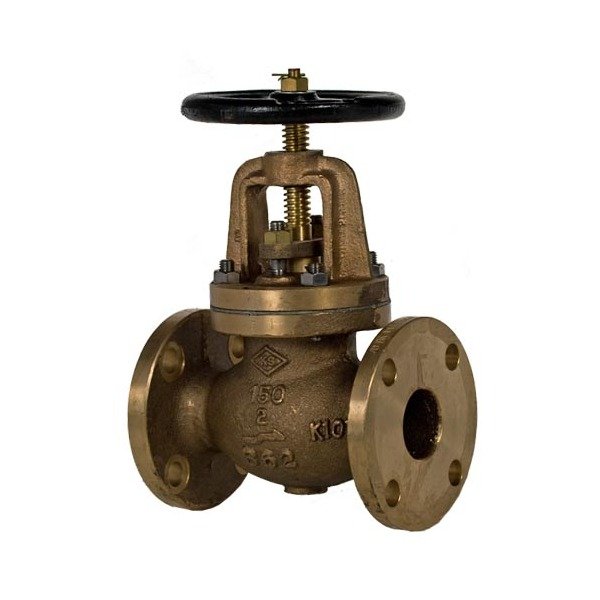

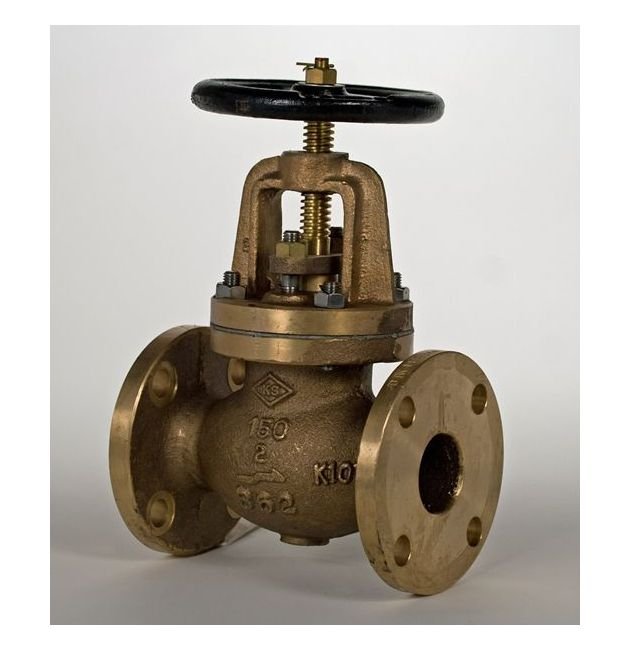

The Class 150 Bronze Globe Valve is crafted for precision and durability, featuring a Bronze body with Brass seat and stem materials. With hydraulic inspections surpassing industry standards - 350 PSIG for Shell and 225 PSIG for Seat, this valve ensures optimal performance and safety. Compliant with ANSI B16.10 and B16.24, Class 150 specifications, it offers reliability and longevity in industrial applications.

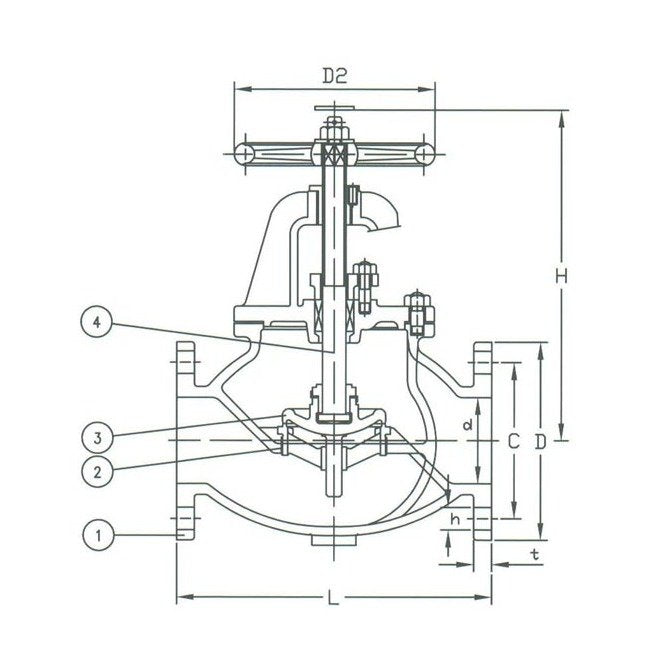

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
11.5 in | 292 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.69 in | 18 mm
Specifications Weight
88 lb | 40 kg
