Class 150 Bronze Globe Valve, Institutional Grade
Class 150 Bronze Globe Valve, Institutional Grade
SKU:VAL-513257
High-quality Class 150 Bronze Globe Valve for consumer and institutional needs. Meets ANSI standards for reliability and performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, Institutional Grade
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, Institutional Grade
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

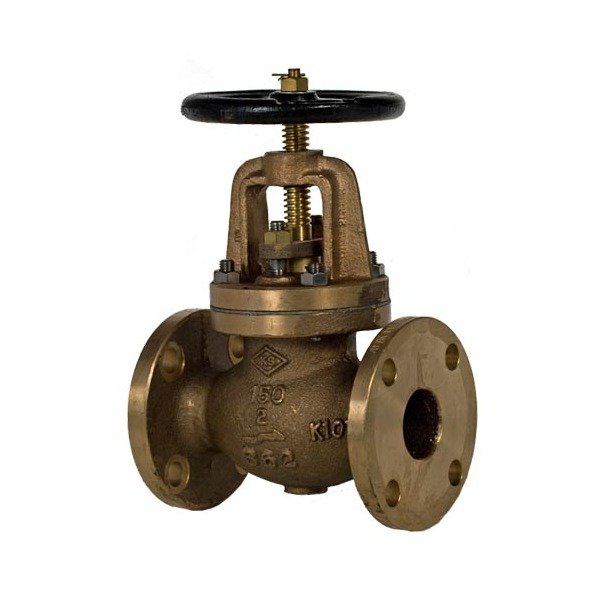

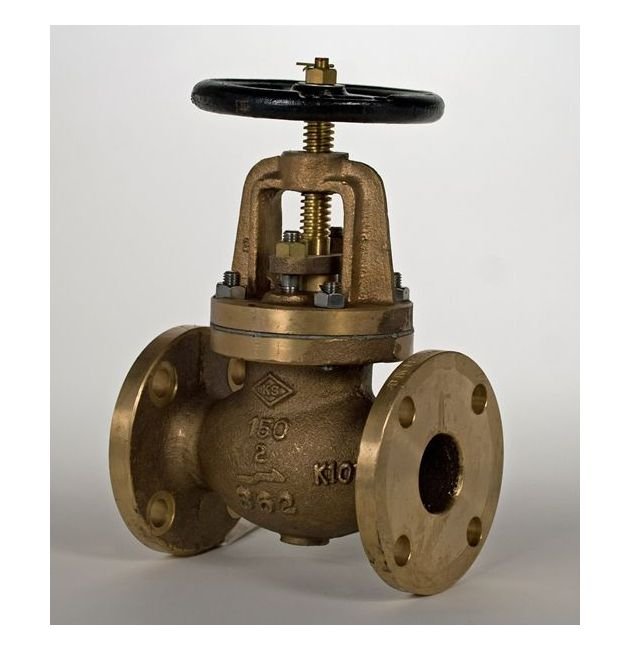

The Class 150 Bronze Globe Valve, Institutional Grade, is a robust and reliable valve designed for both consumer and institutional use. Constructed with bronze body, brass seat, and bronze/stainless steel disc materials, this valve ensures durability and corrosion resistance. Meeting ANSI standards for dimensions and pressure ratings, this valve guarantees optimal performance in various applications. The handwheel actuator and flanged connection make operation and installation hassle-free, catering to institutional procurement needs seamlessly.

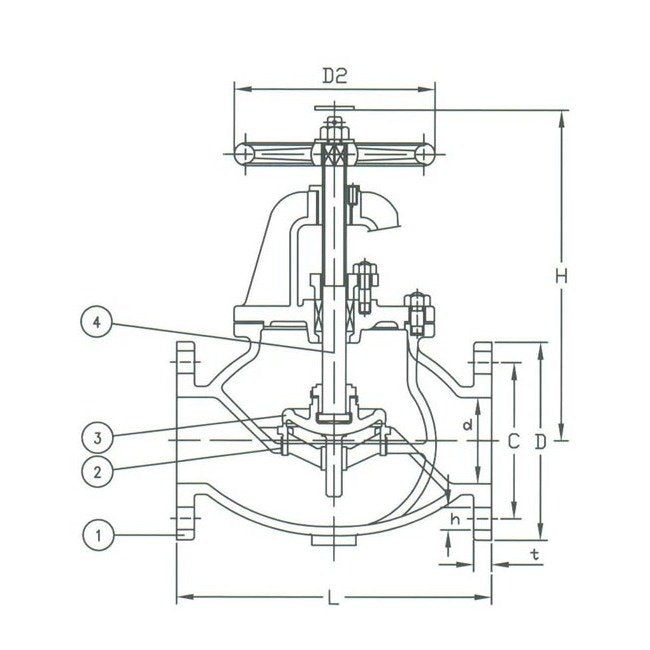

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
19.5 in | 495 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
8"
Specifications Stem Material
Brass
Specifications T
0.94 in | 24 mm
Specifications Weight
275 lb | 125 kg
