Class 150 Bronze Globe Valve, Regular - 2 Inch
Class 150 Bronze Globe Valve, Regular - 2 Inch
SKU:VAL-7f3804
Reliable Class 150 Bronze Globe Valve - 2" size, ANSI B16.10 & B16.24 compliant, ideal for industrial use.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, Regular - 2 Inch
$289.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, Regular - 2 Inch
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

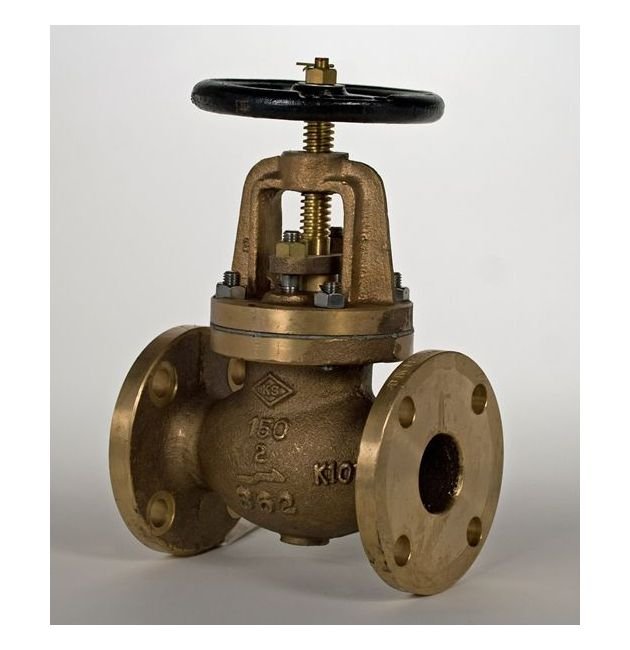

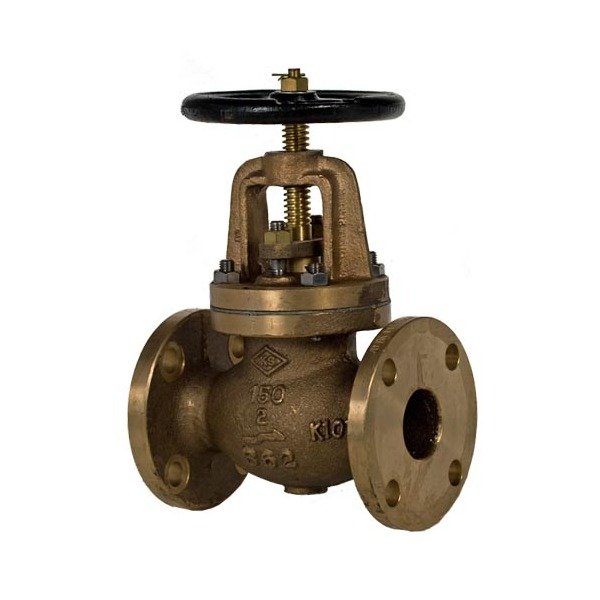

The Class 150 Bronze Globe Valve, Regular, in 2 inches size is a reliable choice for industrial applications. Made of high-quality bronze and brass materials, it ensures durability and longevity. With ANSI B 16.10 face-to-face and ANSI B 16.24 flanges standards compliance, this valve offers precise control and easy installation. The handwheel actuator provides manual control, making it versatile for various systems.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

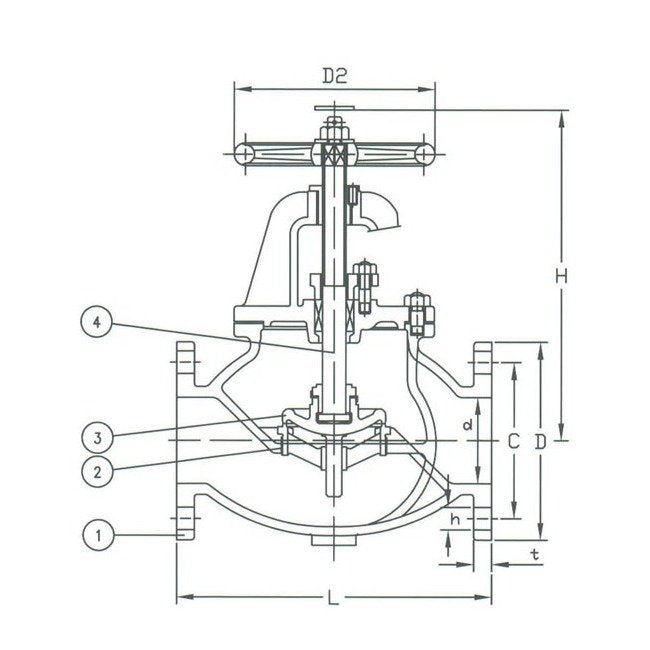

Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2"
Specifications Stem Material
Brass
Specifications T
0.50 in | 13 mm
Specifications Weight
24 lb | 11.0 kg
