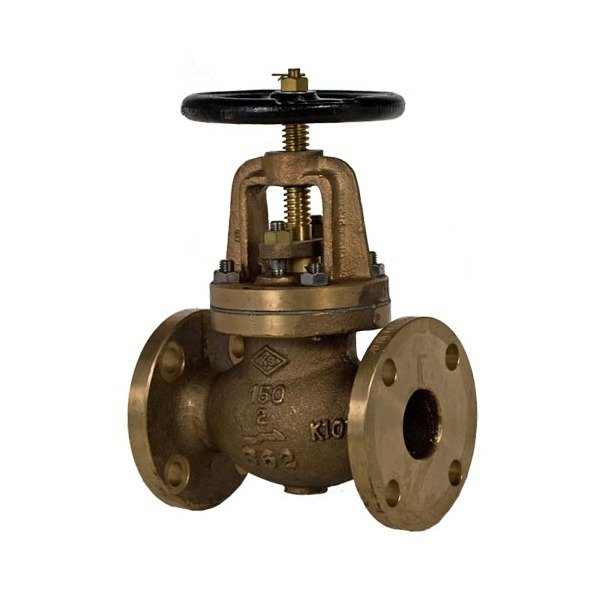

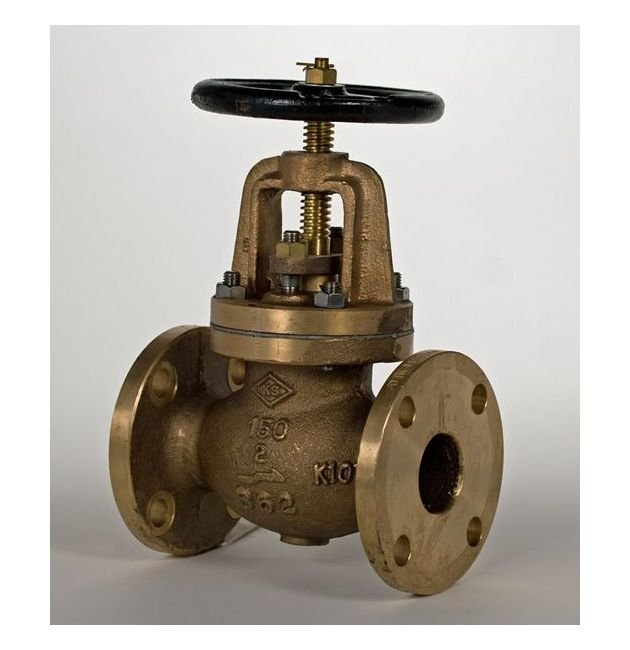

Class 150 Bronze Globe Valve, Regular - 3"
Class 150 Bronze Globe Valve, Regular - 3"
SKU:VAL-35787c
Premium Class 150 Bronze Globe Valve for reliable industrial control. Compliant with ANSI standards.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, Regular - 3"
$369.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, Regular - 3"
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Globe Valve, Regular is expertly crafted for precise control and durability. Constructed with bronze body, brass seat, and either bronze or stainless steel disc ring, this valve ensures reliable performance in demanding environments. Compliant with ANSI B16.10 and B16.24 standards, it offers 350 PSIG hydraulic inspection for shell and 225 PSIG for the seat. With a weight of 51 lb and a flanged connection, this valve is ideal for industrial applications requiring robust valve solutions.

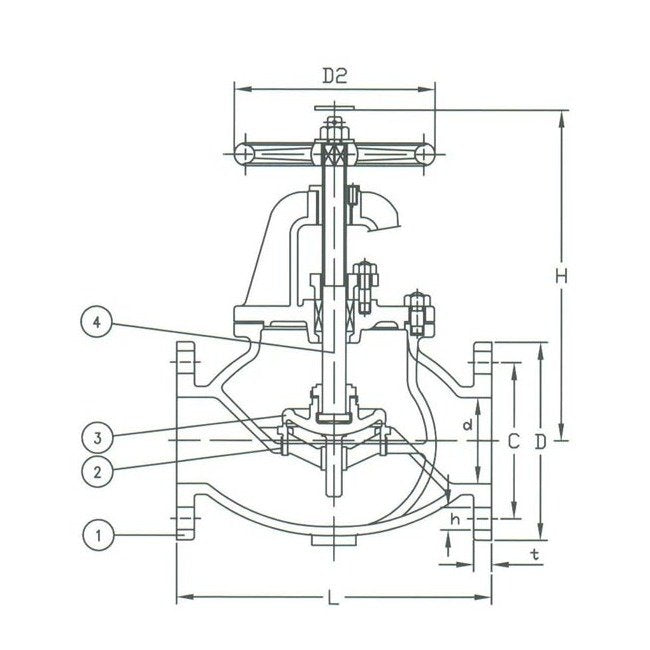

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.5 in | 241 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.63 in | 16 mm
Specifications Weight
51 lb | 23.0 kg
