Class 150 Bronze Globe Valve, Regular - 5" ANSI Valve
Class 150 Bronze Globe Valve, Regular - 5" ANSI Valve
SKU:VAL-a89a5e
Premium Class 150 Bronze Globe Valve for precise fluid control in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, Regular - 5" ANSI Valve
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, Regular - 5" ANSI Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Globe Valve is a reliable choice for fluid control applications, featuring a Bronze body, Brass seat, and a choice of Bronze or Stainless Steel Disc material. With Hydraulic Inspection ratings of 350 PSIG for the shell and 225 PSIG for the seat, this valve ensures robust performance. Compliant with ANSI standards B 16.10 and B 16.24 Class 150, the valve offers precise control and durability for industrial settings.

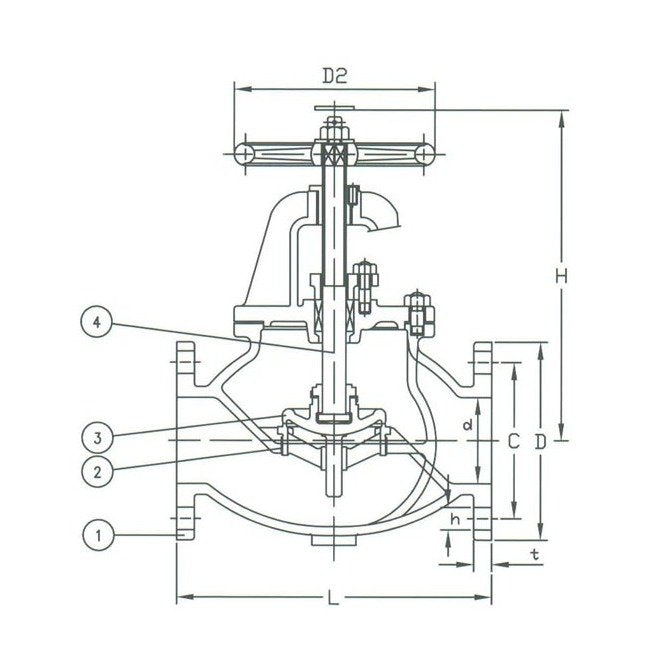

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
14 in | 356 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
123 lb | 56 kg
