Class 150 Bronze Globe Valve, Regular - 6", ANSI Flanged
Class 150 Bronze Globe Valve, Regular - 6", ANSI Flanged
SKU:VAL-5b6b62
Durable Class 150 Bronze Globe Valve, Regular - 6", ANSI Flanged - Meets ANSI Standards
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, Regular - 6", ANSI Flanged
$649.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, Regular - 6", ANSI Flanged
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

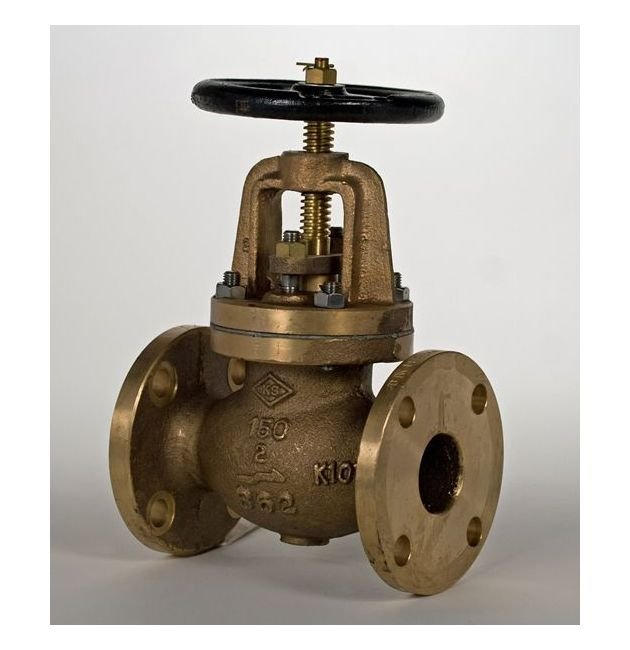

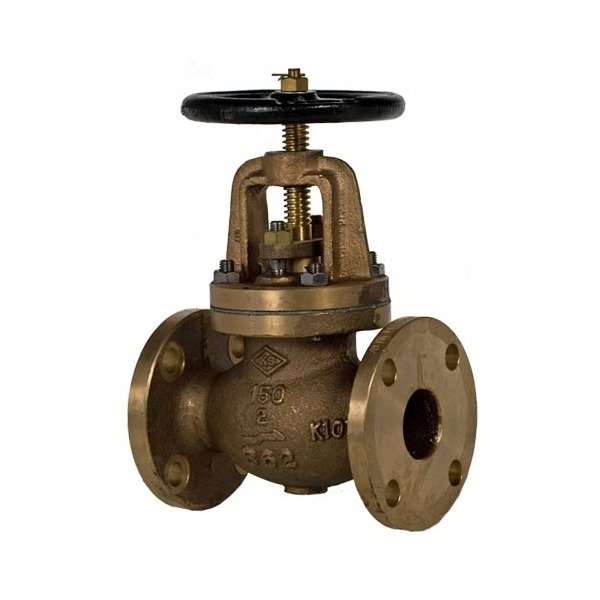

The Class 150 Bronze Globe Valve, Regular is a durable and reliable valve designed for industrial applications. Crafted with precision, it features a Bronze body, Brass seat, and Bronze or Stainless Steel disc material. This valve meets ANSI B 16.10 face-to-face and ANSI B 16.24 flange standards, ensuring seamless integration into existing systems. With a hydraulic inspection pressure of 350 PSIG (Shell) and 225 PSIG (Seat), this valve guarantees optimal performance and safety.

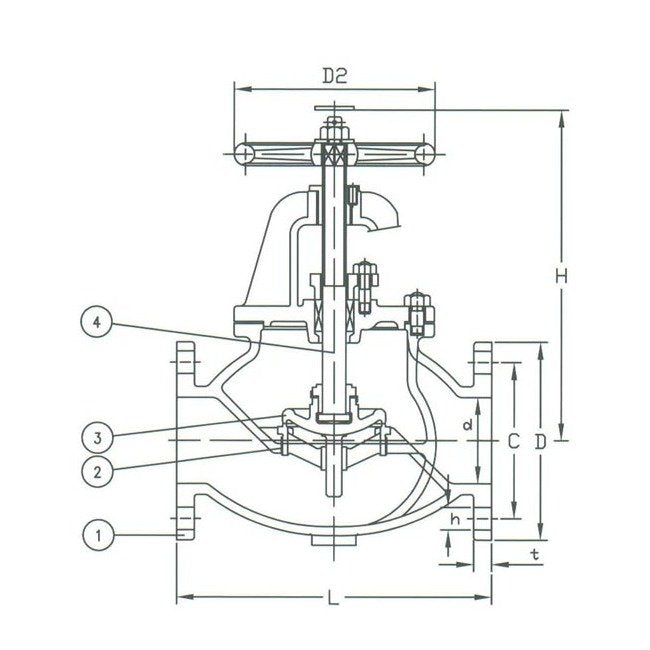

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
16 in | 406 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
6"
Specifications Stem Material
Brass
Specifications T
0.81 in | 21 mm
Specifications Weight
183 lb | 83 kg
