Class 150 Bronze Globe Valve, SDNR - 2-1/2"
Class 150 Bronze Globe Valve, SDNR - 2-1/2"
SKU:VAL-ad9680
High-performance Class 150 Bronze Globe Valve, SDNR - 2-1/2" for industrial applications, meets ANSI standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, SDNR - 2-1/2"
$289.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, SDNR - 2-1/2"
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

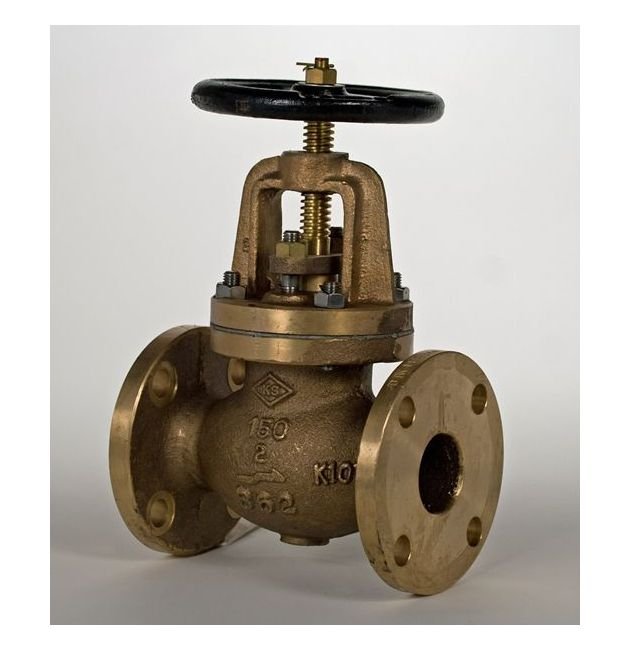

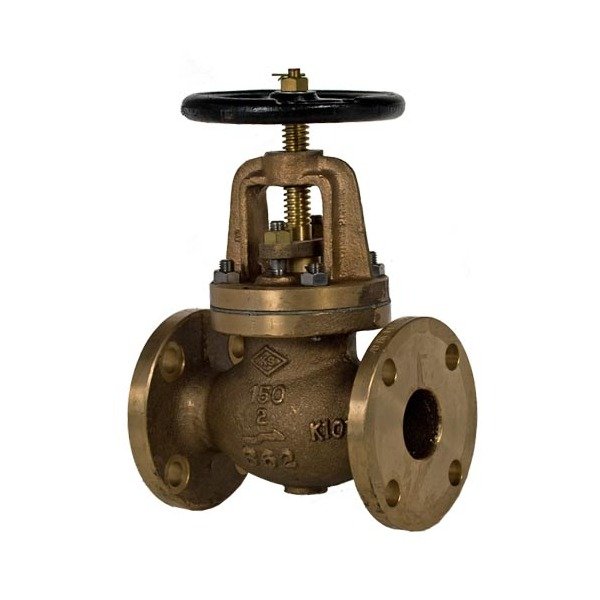

The Class 150 Bronze Globe Valve, SDNR is a robust and reliable valve designed for industrial applications. Constructed with high-quality bronze body, brass seat, and bronze disc materials, this valve ensures durability and corrosion resistance. The valve meets ANSI B 16.10 face to face and ANSI B 16.24 flanges standards, making it ideal for institutional settings. With a hydraulic inspection shell rating of 350 PSIG and seat rating of 225 PSIG, this valve delivers superior performance under high pressure conditions. The handwheel actuator allows for manual operation, providing precise control over fluid flow. Upgrade your industrial systems with this superior quality globe valve.

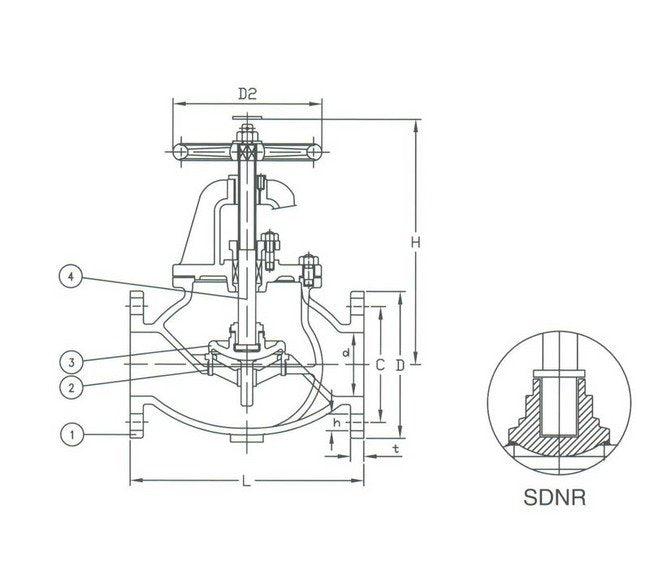

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
7.50 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
12.00 in | 305 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8.5 in | 216 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2-1/2"
Specifications Stem Material
Brass
Specifications T
0.56 in | 14 mm
Specifications Weight
37 lb | 17.0 kg
