Class 150 Bronze Globe Valve, SDNR - 2" Flanged ANSI Valve
Class 150 Bronze Globe Valve, SDNR - 2" Flanged ANSI Valve
SKU:VAL-22a2d3
Durable Class 150 Bronze Globe Valve with handwheel actuator, ANSI B 16.10 & B 16.24 compliant
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, SDNR - 2" Flanged ANSI Valve
$349.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, SDNR - 2" Flanged ANSI Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

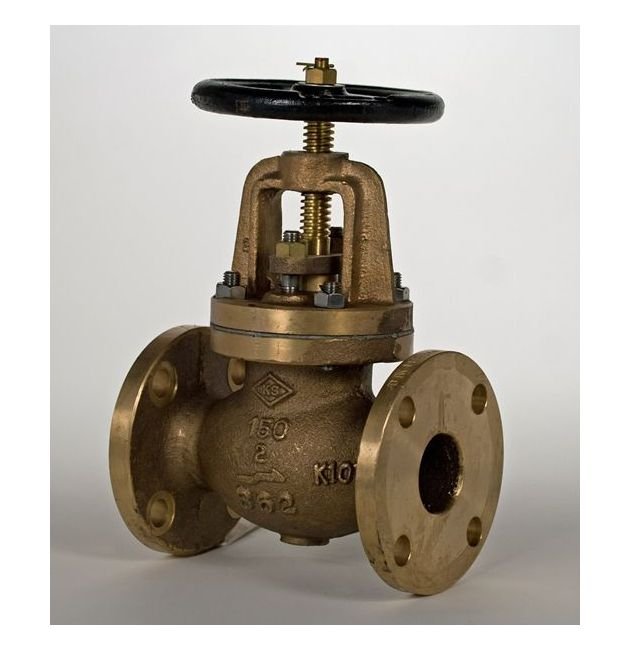

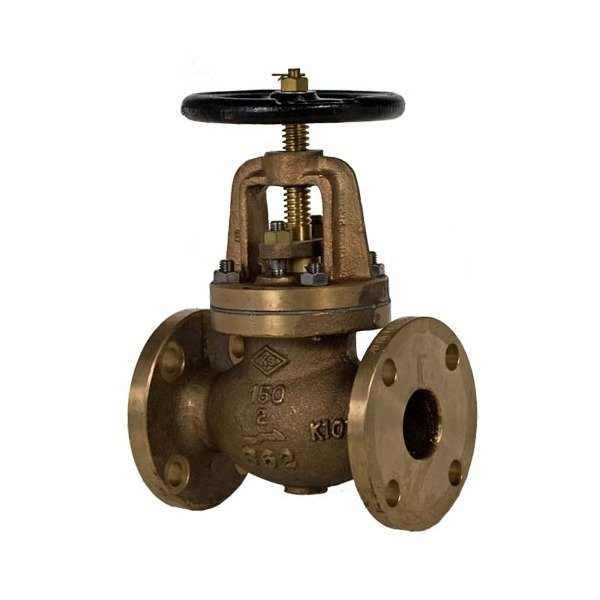

The Class 150 Bronze Globe Valve, SDNR is a durable and reliable valve suitable for various industrial applications. Constructed with high-quality bronze body, brass seat, and bronze or stainless steel disc material, this valve ensures strength and corrosion resistance. Meeting ANSI B 16.10 and B 16.24 standards, it offers a hydraulic inspection shell pressure of 350 PSIG and seat pressure of 225 PSIG. With a handwheel actuator and flanged drilled connection, this valve provides ease of operation and installation.

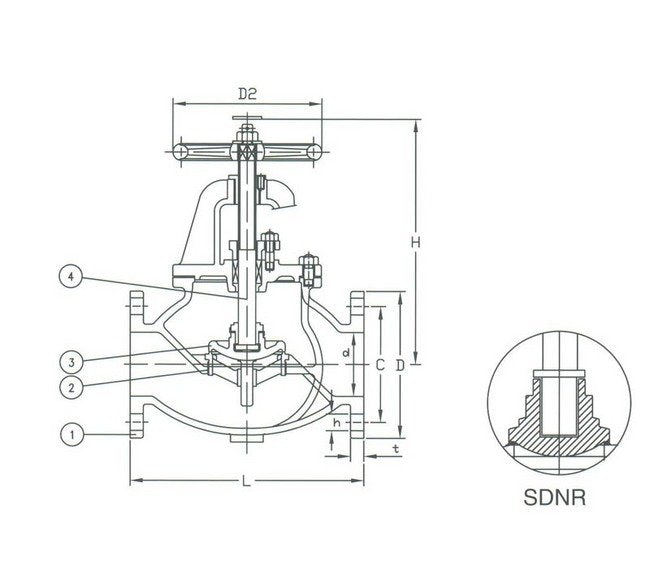

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2"
Specifications Stem Material
Brass
Specifications T
0.50 in | 13 mm
Specifications Weight
24 lb | 11.0 kg
