Class 150 Bronze Globe Valve, SDNR - 4"
Class 150 Bronze Globe Valve, SDNR - 4"
SKU:VAL-0ffbff
Durable Class 150 Bronze Globe Valve, SDNR - Ideal for industrial use, ANSI B 16.10 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, SDNR - 4"
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, SDNR - 4"
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

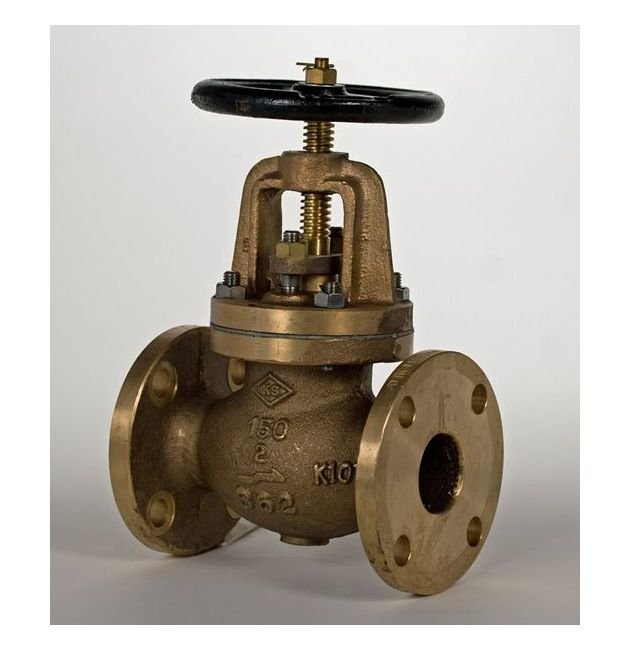

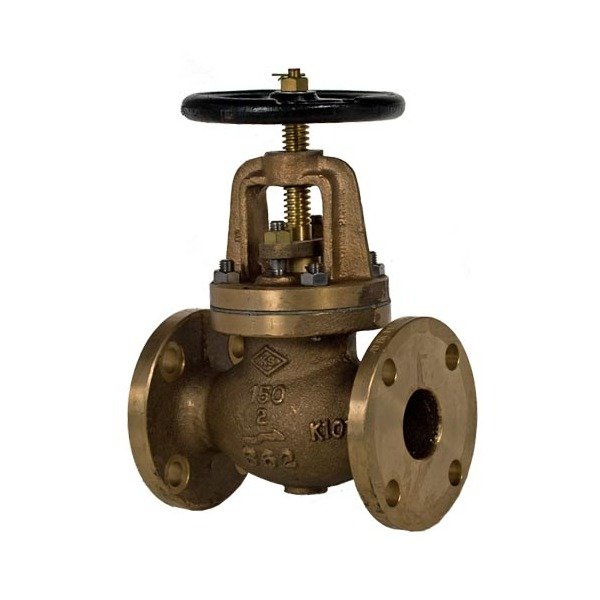

The Class 150 Bronze Globe Valve, SDNR is a reliable valve designed for industrial applications. Constructed with bronze body, brass seat, and options for bronze or stainless steel disc material, this valve ensures durability and corrosion resistance. With ANSI B 16.10 compliance, featuring a bolted bonnet and an OS&Y design, it meets the rigorous standards of institutional procurement.

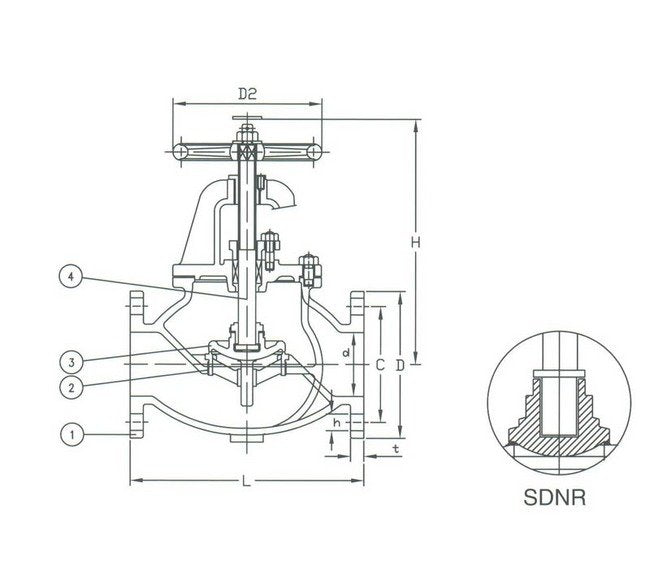

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
11.5 in | 292 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.69 in | 18 mm
Specifications Weight
88 lb | 40 kg
