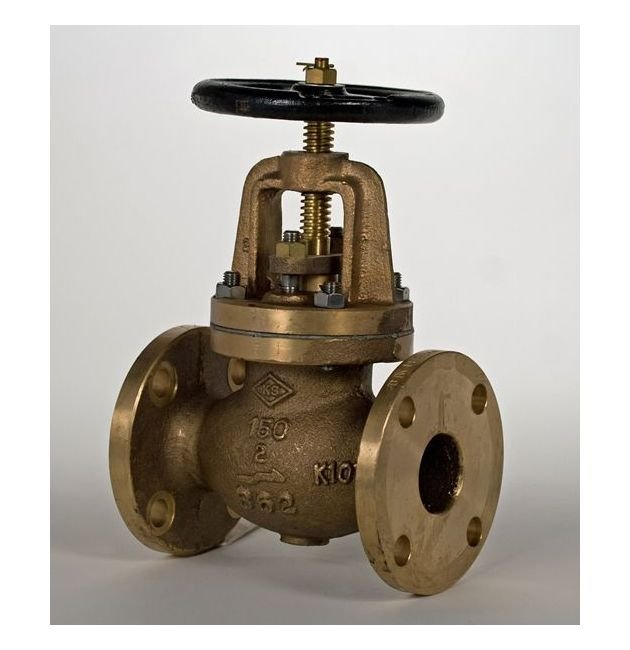

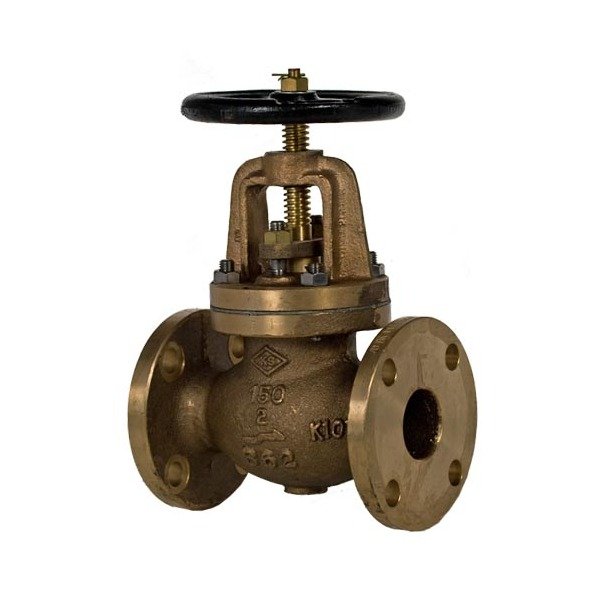

Class 150 Bronze Globe Valve, SDNR - 5 Inch, Flanged Drilled
Class 150 Bronze Globe Valve, SDNR - 5 Inch, Flanged Drilled
SKU:VAL-dc423c
Reliable Class 150 Bronze Globe Valve, SDNR - 5" size, ANSI compliant, ideal for industrial use.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, SDNR - 5 Inch, Flanged Drilled
$589.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, SDNR - 5 Inch, Flanged Drilled
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Globe Valve, SDNR is a robust solution designed for industrial applications requiring reliable flow control. Constructed with high-quality bronze body, brass seat, and a choice of bronze or stainless steel disc material, this valve ensures durability and performance. Compliant with ANSI standards, featuring a bolted bonnet, OS&Y design, and flanges meeting ANSI B16.24 Class 150 specifications, it offers exceptional hydraulic performance with shell and seat inspections rated at 350 PSIG and 225 PSIG respectively. The handwheel-operated valve provides precise control, making it ideal for institutional settings.

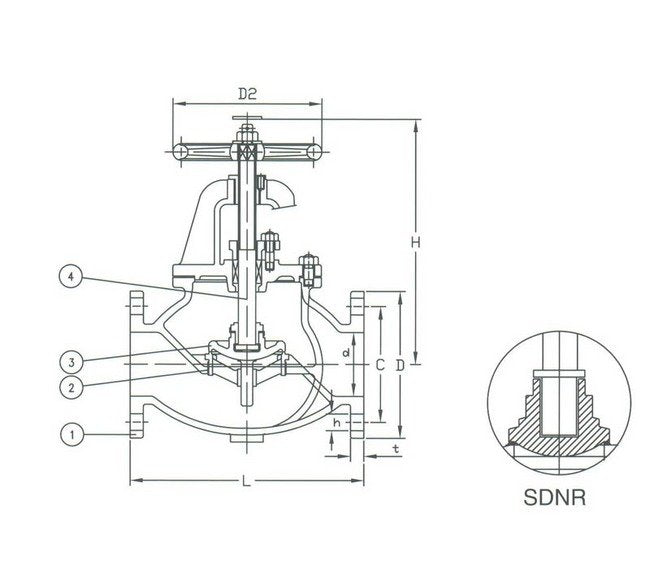

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
14 in | 356 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
123 lb | 56 kg
