Class 150 Bronze Globe Valve, SDNR - 8" Size
Class 150 Bronze Globe Valve, SDNR - 8" Size
SKU:VAL-619952
Durable Class 150 Bronze Globe Valve SDNR - Ideal for high-pressure industrial applications. ANSI B 16.10 face to face & ANSI B 16.24 flange compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve, SDNR - 8" Size
$799.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve, SDNR - 8" Size
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

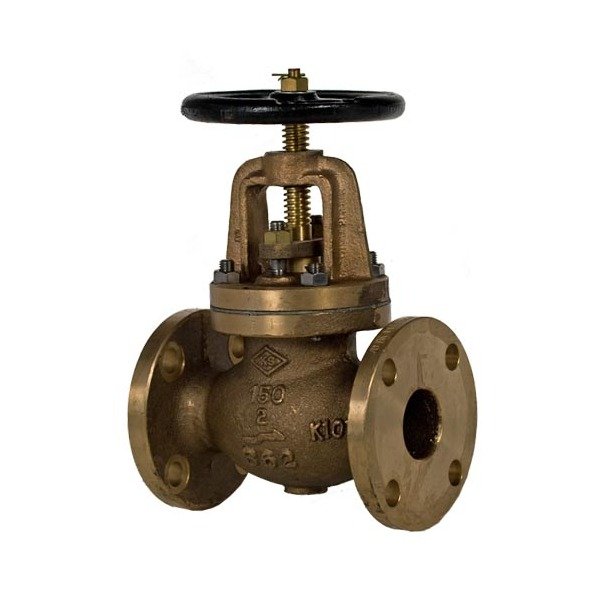

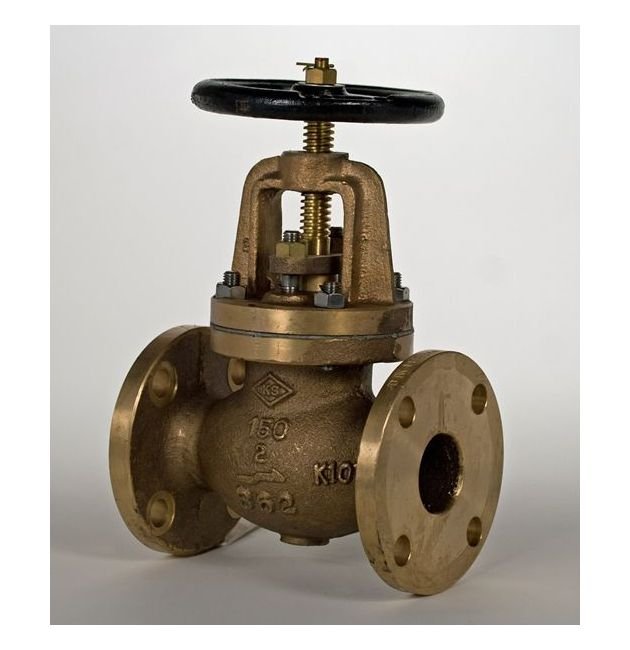

The Class 150 Bronze Globe Valve SDNR is a robust valve designed for industrial applications. Constructed with durable bronze body, brass seat, and bronze or stainless steel disc, this valve ensures reliable performance under high-pressure conditions. With compliance to ANSI B 16.10 face to face and ANSI B 16.24 flange standards, and a working pressure of 350 PSIG, this valve guarantees efficient operation and long-lasting durability. The handwheel actuators provide precise control, making it ideal for critical systems in government facilities and industrial settings.

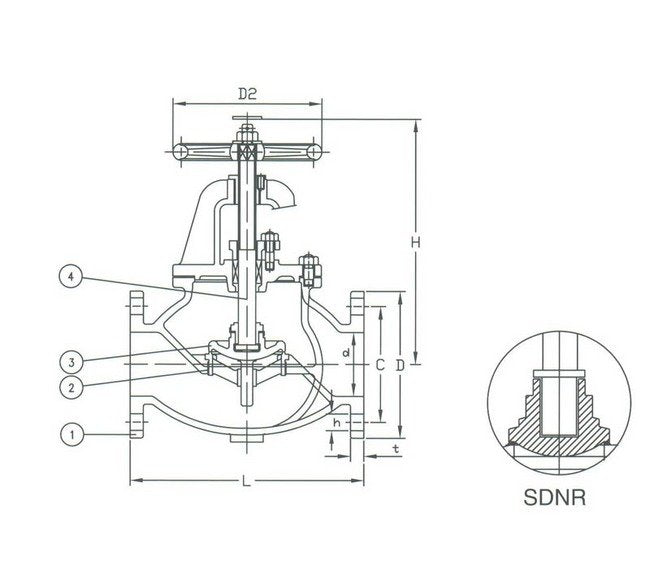

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
19.5 in | 495 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
8"
Specifications Stem Material
Brass
Specifications T
0.94 in | 24 mm
Specifications Weight
275 lb | 125 kg
