Class 150 Bronze Globe Valve, SDNR - Ideal for ANSI Applications

Name: Class 150 Bronze Globe Valve, SDNR - Ideal for ANSI Applications
Brand: World Wide Metric, Inc.
SKU: VAL-5b0950
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-5b0950

Durable Class 150 Bronze Globe Valve built for ANSI applications with safety features & precise control.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

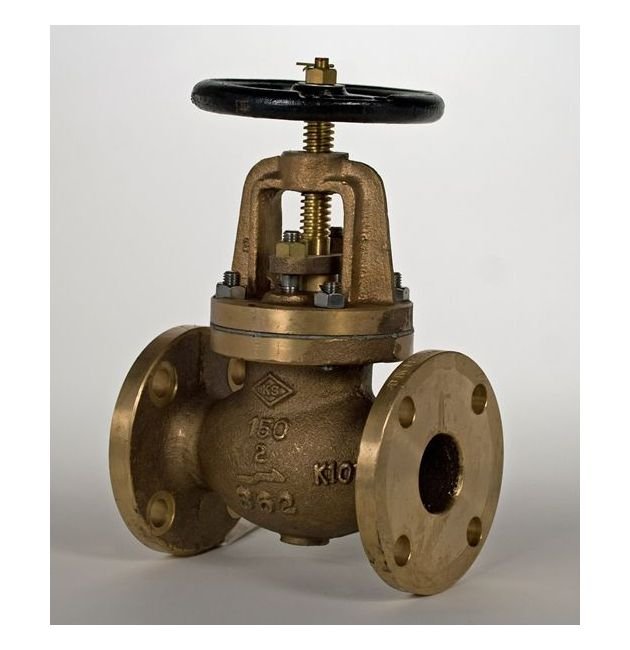

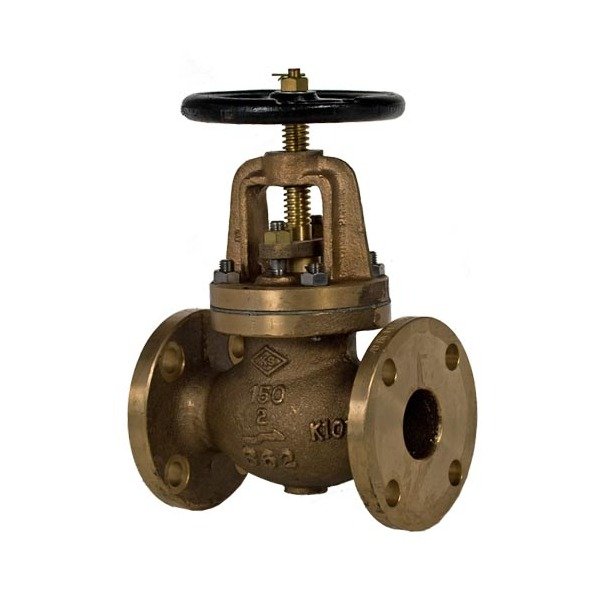

The Class 150 Bronze Globe Valve with SDNR is a precision-engineered valve designed for optimal performance in ANSI applications. Crafted with a bronze body and brass components, this valve ensures durability and reliability in demanding industrial environments. The bolted bonnet and OS&Y design enhance safety and ease of maintenance. Meeting ANSI B16.10 and B16.24 standards, along with a range of hydraulic inspections to guarantee operational efficiency, this valve is a dependable choice for industrial fluid control.

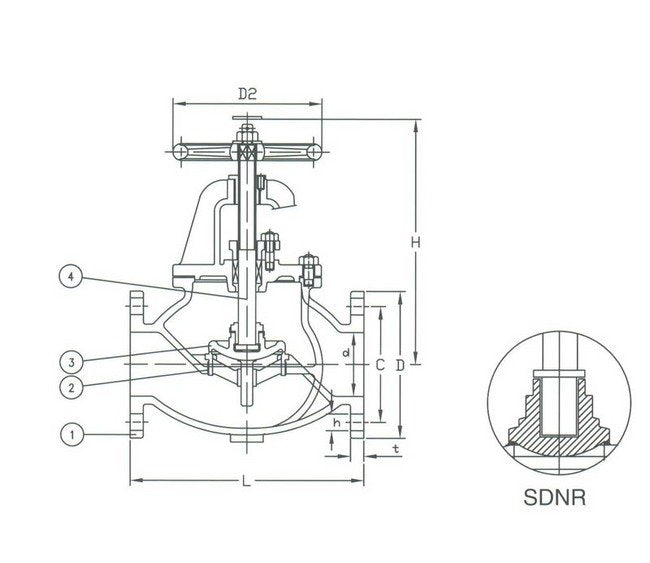

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

3.88 in | 99 mm

Specifications Connection

Flanged Drilled

Specifications D

5 in | 127 mm

Specifications D2

5.00 in | 127 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

9.00 in | 229 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

6.50 in | 165 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

1-1/2"

Specifications Stem Material

Brass

Specifications T

0.44 in | 11 mm

Specifications Weight

15 lb | 7.0 kg
