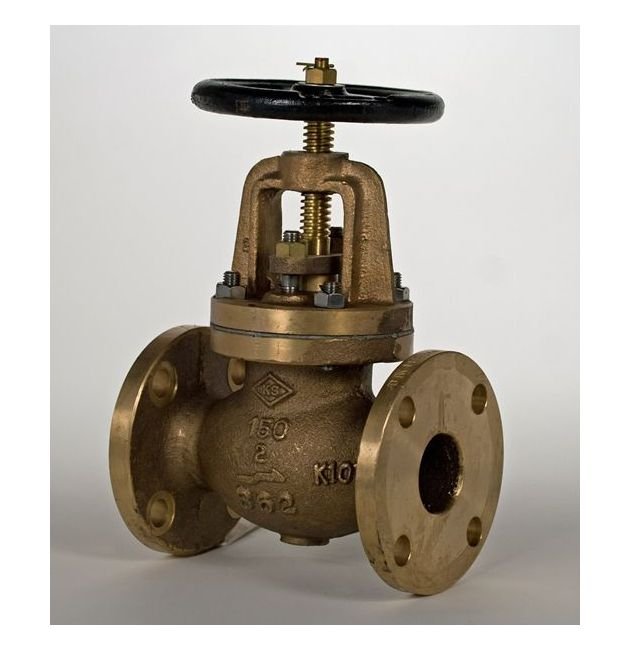

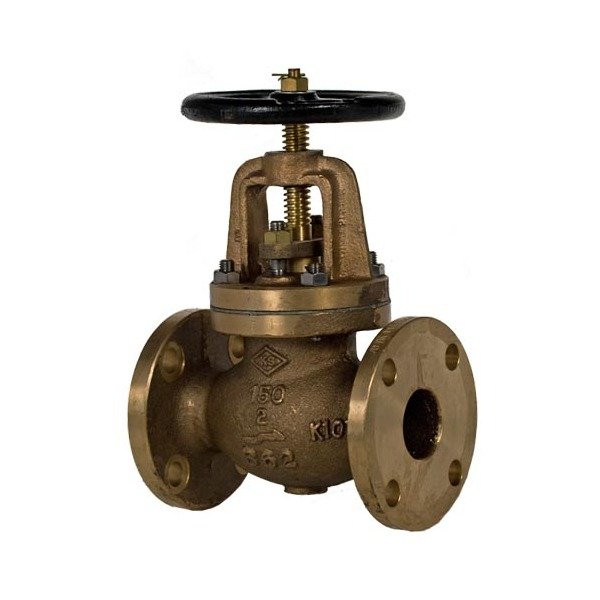

The Class 150 Bronze Globe Valve with Bolted Bonnet is a reliable and durable valve designed for industrial applications. Constructed with high-quality Bronze body, Brass seat, and Bronze or Stainless Steel disc ring, this valve ensures longevity and efficient performance. It meets ANSI standards for Face to face and Flanges, making it ideal for institutional procurement needs. With a hydraulic Shell inspection pressure of 350 PSIG and Seat inspection pressure of 225 PSIG, this valve guarantees safety and reliability in operations.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

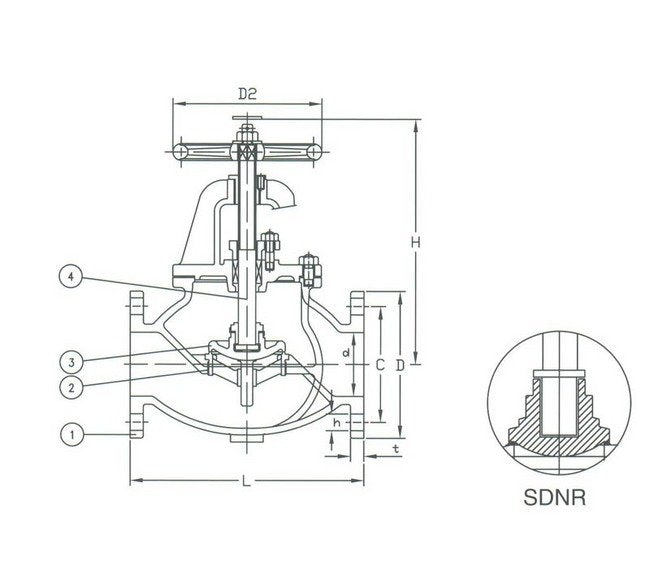

Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.5 in | 241 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.63 in | 16 mm
Specifications Weight
51 lb | 23.0 kg
