Class 150 Bronze Globe Valve with SDNR, 6"
Class 150 Bronze Globe Valve with SDNR, 6"
SKU:VAL-a8fd97
High-performance Class 150 Bronze Globe Valve with SDNR for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Class 150 Bronze Globe Valve with SDNR, 6"
$799.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Globe Valve with SDNR, 6"
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Globe Valve with SDNR is a premium quality valve designed for precise flow control in industrial settings. Constructed with durable bronze body, brass seat, and bronze disc, it ensures longevity and reliable performance. Meeting ANSI standards for Class 150, this valve features a bolted bonnet and OS&Y design for easy maintenance and operation. With hydraulic inspections rated at 350 PSIG for shell and 225 PSIG for seat, it guarantees safety and efficiency.

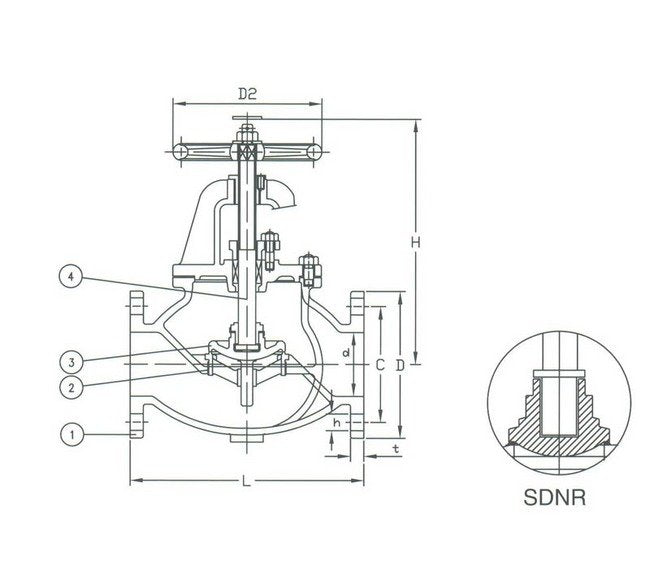

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
16 in | 406 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
6"
Specifications Stem Material
Brass
Specifications T
0.81 in | 21 mm
Specifications Weight
183 lb | 83 kg
