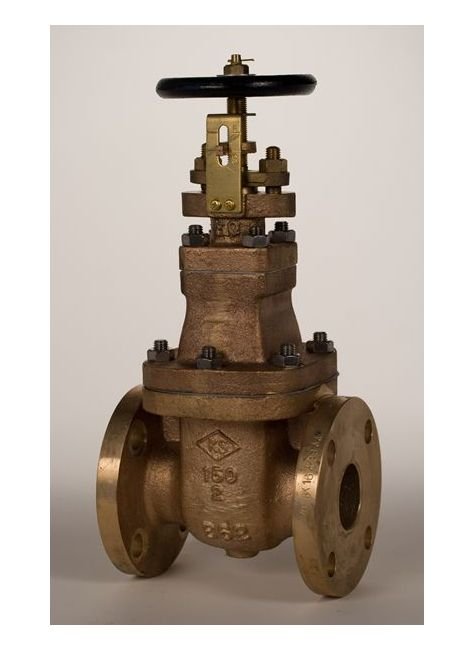

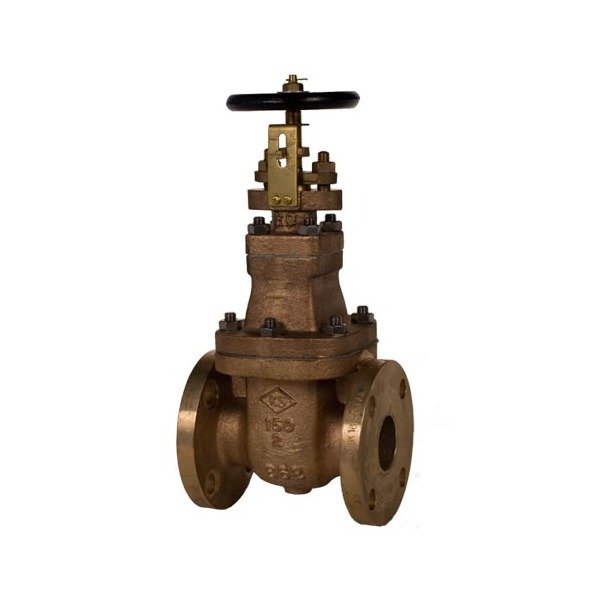

Class 150 Bronze NRS Gate Valve - Bolted Bonnet
Class 150 Bronze NRS Gate Valve - Bolted Bonnet
SKU:VAL-ccd0b8
Durable Class 150 Bronze NRS Gate Valve for ANSI applications with exceptional hydraulic performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve - Bolted Bonnet
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve - Bolted Bonnet
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non-Rising Stem is a high-quality valve designed for reliable performance in ANSI applications. Constructed with Bronze body, Brass seat, and Bronze or Stainless Steel disc material, it ensures durability and corrosion resistance. This valve is meticulously engineered to meet ANSI standards for face to face dimensions and flange connections, offering exceptional hydraulic performance at 350 PSIG shell pressure and 225 PSIG seat pressure. Ideal for industrial and institutional settings where precise flow control is essential.
Ready to Grow Without Cash Flow Constraints?

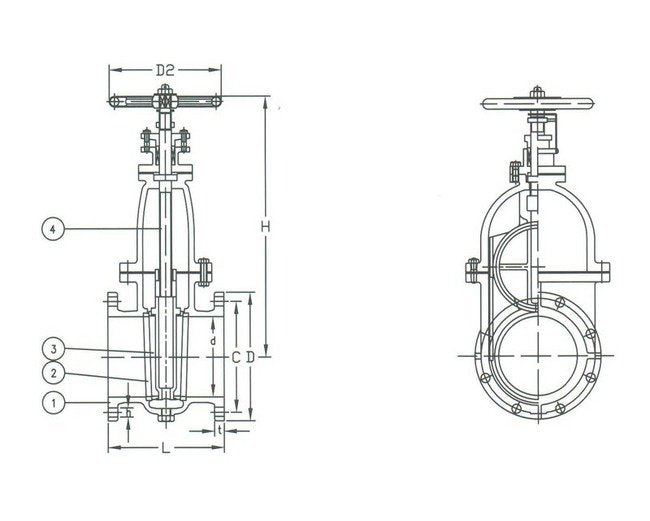

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
7.12 in | 181 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
17.00 in | 432 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.00 in | 229 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
4"
Specifications Stem Material
Brass
Specifications T
0.68 in | 17 mm
Specifications Weight
84 lb | 38.0 kg
