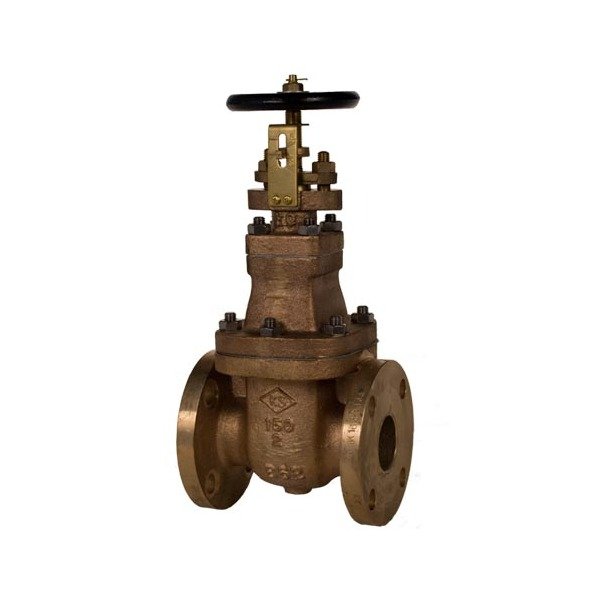

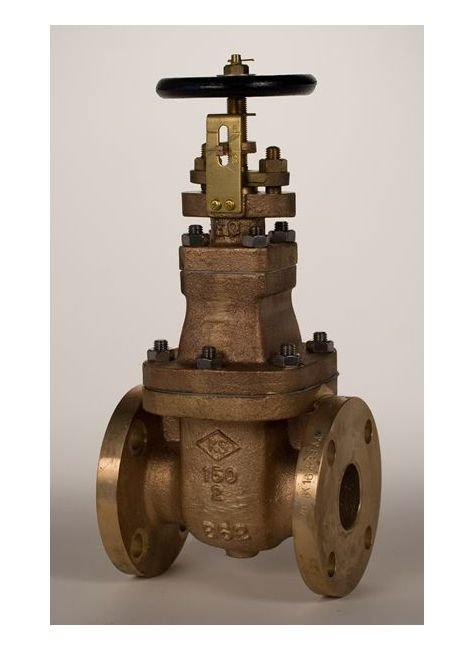

Class 150 Bronze NRS Gate Valve - Bolted Bonnet

Name: Class 150 Bronze NRS Gate Valve - Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-20b41f
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-20b41f

High-quality Class 150 Bronze NRS Gate Valve for precise fluid control in industrial applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non-Rising Stem is crafted for durability and high performance in industrial settings. Constructed with bronze body and stem, brass seat, and bronze/stainless steel disc materials, this valve ensures reliable operation under high pressure. With ANSI B16.10 face to face dimensions and ANSI B16.24 Class 150 flanges, it meets industry standards for seamless integration and compatibility. Ideal for fluid control applications requiring precision and longevity.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

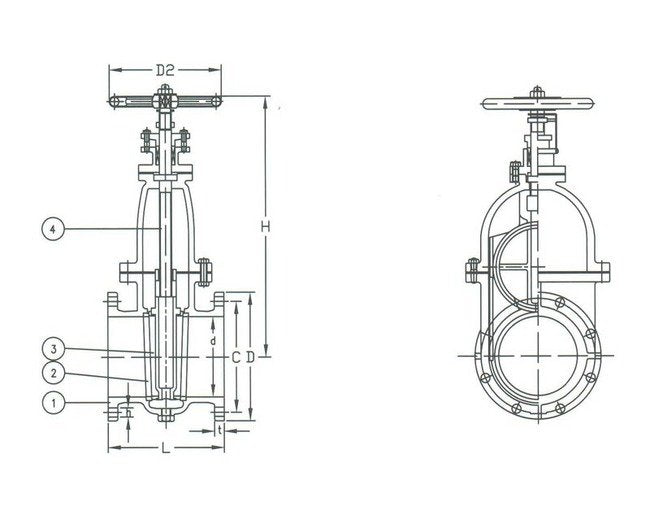

Specifications C

14 1/4 in | 362 mm

Specifications Connection

Flanged Drilled

Specifications D

16.00 in | 406 mm

Specifications D2

14.00 in | 356 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

31.50 in | 800 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

13.00 in | 330 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

10"

Specifications Stem Material

Brass

Specifications T

1.00 in | 25 mm

Specifications Weight

420 lb | 191 kg

Class 150 Bronze NRS Gate Valve - Bolted Bonnet
