Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 2-1/2 inch
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 2-1/2 inch
SKU:VAL-4372dd
Durable Class 150 Bronze NRS Gate Valve for precise fluid control in institutional settings. Meets ANSI standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 2-1/2 inch
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 2-1/2 inch
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

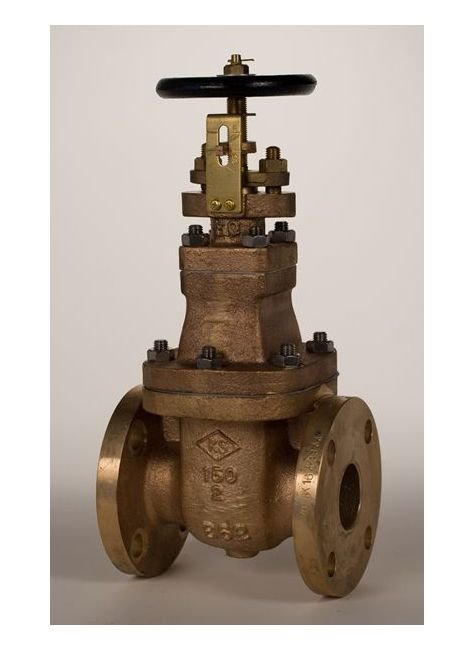

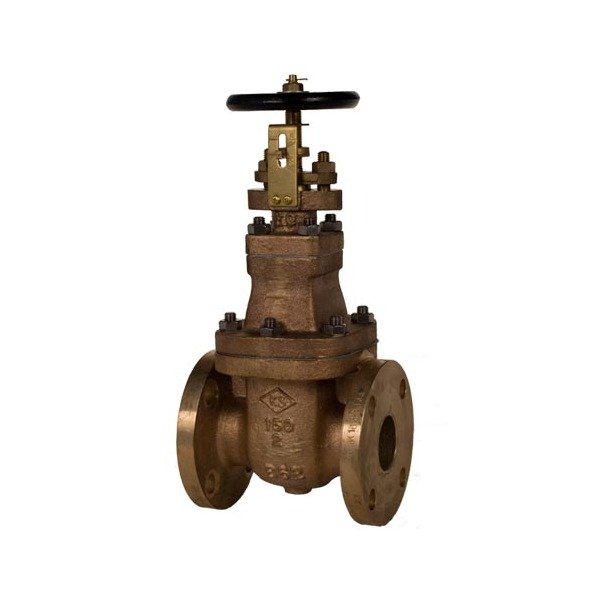

The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non Rising Stem is a reliable solution for fluid control applications. Constructed with bronze body, stainless steel seat, and either bronze or stainless steel disc material, this valve ensures durability and corrosion resistance. Designed to meet ANSI B16.10 standards for face-to-face dimensions and ANSI B16.24 Class 150 flange specifications, it offers hydraulic inspections up to 350 PSIG. The handwheel actuator provides ease of operation, making it suitable for both industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

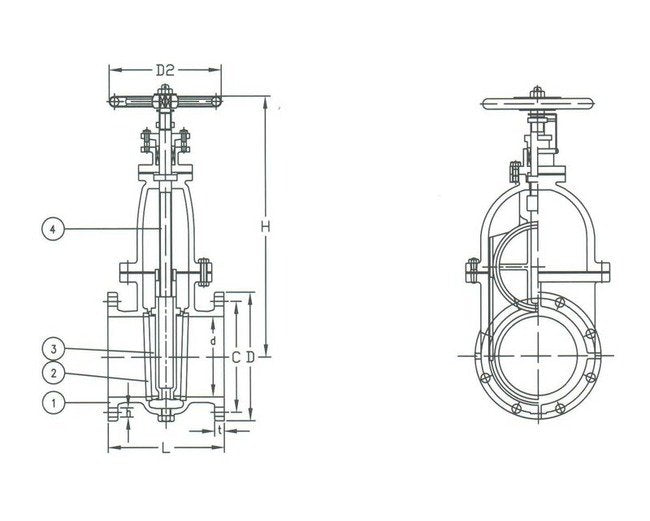

Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
5.50 in | 140 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
13.00 in | 330 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.5 in | 191 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
2-1/2"
Specifications Stem Material
Stainless Steel
Specifications T
0.56 in | 14 mm
Specifications Weight
44 lb | 20.0 kg
