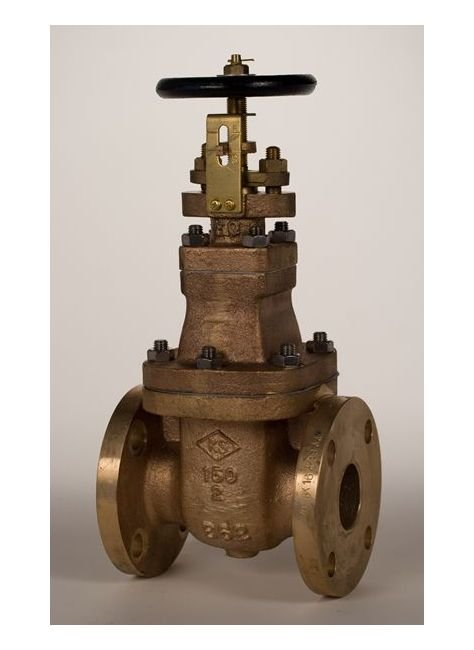

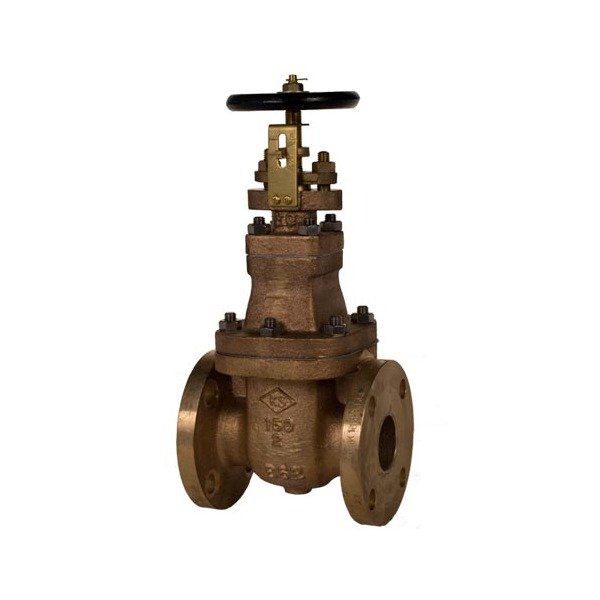

Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 3"
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 3"
SKU:VAL-72e7c7
High-performance Class 150 Bronze NRS Gate Valve - Ideal for industrial flow control
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 3"
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve, Bolted Bonnet - Non Rising Stem - 3"
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze NRS Gate Valve with Bolted Bonnet and Non Rising Stem is expertly crafted for durability and reliability. Constructed from high-quality bronze, brass, and stainless steel materials, this valve ensures exceptional performance in demanding environments. Compliant with ANSI B16.10 and ANSI B16.24 Class 150 standards, it guarantees superior hydraulic inspection capabilities with a shell pressure rating of 350 PSIG and a seat pressure rating of 225 PSIG. Ideal for industrial applications requiring precise flow control with a flanged connection design.

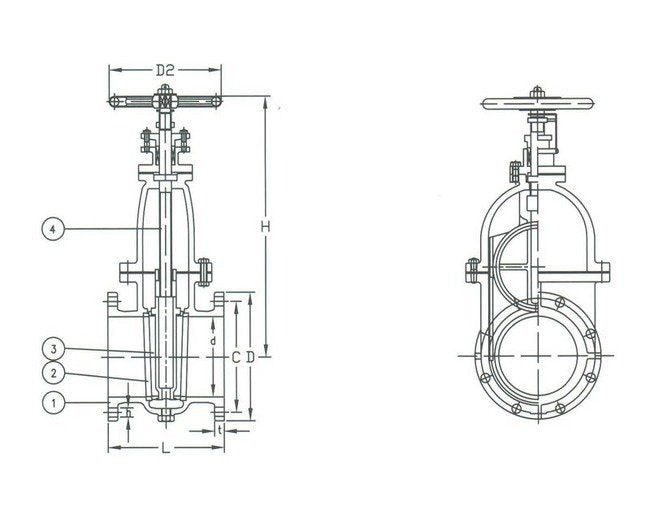

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
6.31 in | 160 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
13.00 in | 330 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.62 in | 16 mm
Specifications Weight
53 lb | 24.0 kg
