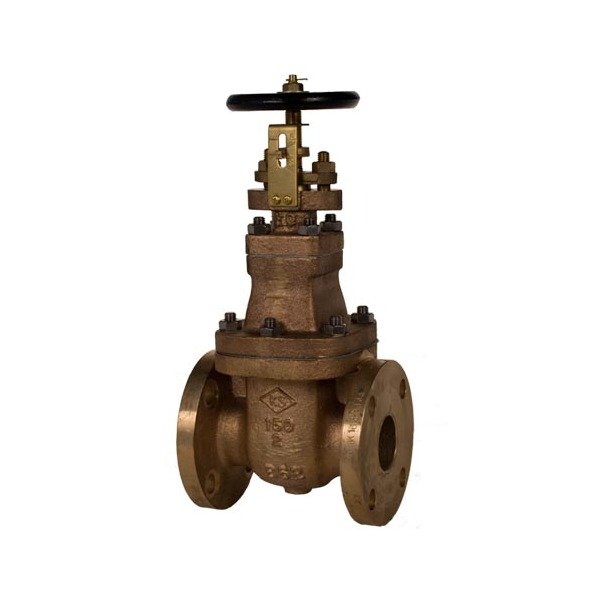

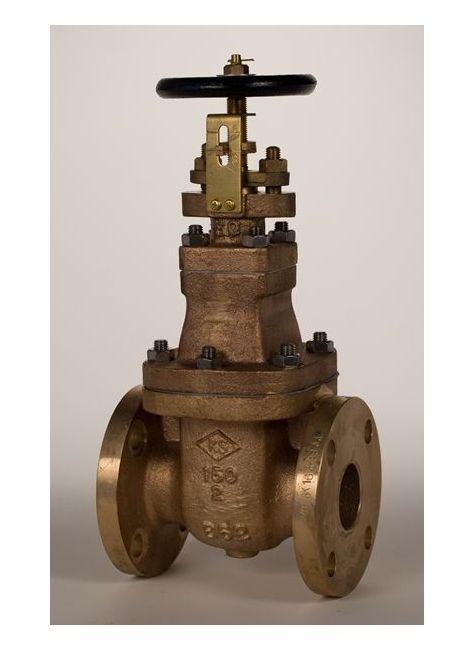

Class 150 Bronze NRS Gate Valve - Non Rising Stem
Class 150 Bronze NRS Gate Valve - Non Rising Stem
SKU:VAL-612e4e
Durable Class 150 Bronze NRS Gate Valve with Non Rising Stem, meets ANSI standards, ideal for high-pressure applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve - Non Rising Stem
$289.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve - Non Rising Stem
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non Rising Stem is a robust and reliable industrial valve suitable for a wide range of applications. Made of high-quality bronze and stainless steel materials, this valve ensures durability and corrosion resistance. With ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flanges, it meets industry standards for seamless integration and performance. The valve features a Handwheel actuator for easy operation and is hydraulically tested to withstand pressures of up to 350 PSIG for the shell and 225 PSIG for the seat, making it ideal for demanding environments.
Ready to Grow Without Cash Flow Constraints?

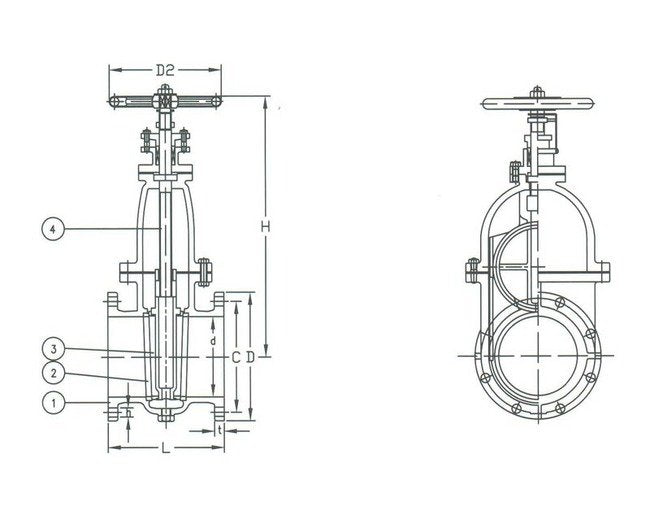

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
7.88 in | 200 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
19.50 in | 495 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
10 in | 254 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
5"
Specifications Stem Material
Stainless Steel
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
