Class 150 Bronze NRS Gate Valve, Non Rising Stem - 8"
Class 150 Bronze NRS Gate Valve, Non Rising Stem - 8"
SKU:VAL-e9f1f6
Durable Class 150 Bronze NRS Gate Valve for reliable flow control in diverse applications.
Regular price
$799.00
Regular price
Sale price
$799.00
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve, Non Rising Stem - 8"
$799.00
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve, Non Rising Stem - 8"
$799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

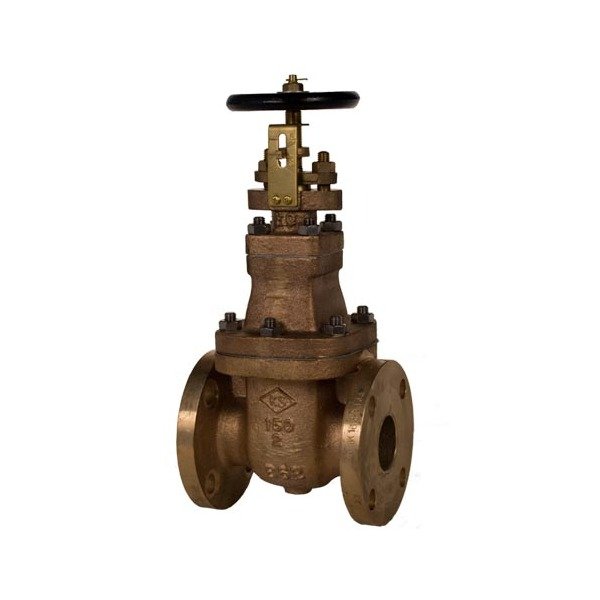

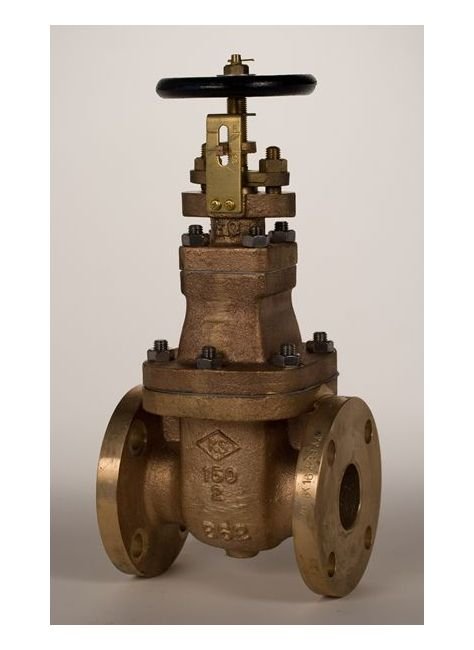

The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non Rising Stem is a robust and reliable valve suitable for various applications. Constructed from high-quality bronze body material, stainless steel seat, and disc materials, and stainless steel stem, this valve ensures durability and corrosion resistance. With ANSI B16.10 face-to-face and ANSI B16.24 Class 150 flange dimensions, it meets industry standards for precise installation. The handwheel actuator provides easy manual operation, making it ideal for both consumer and institutional buyers requiring a dependable valve solution.

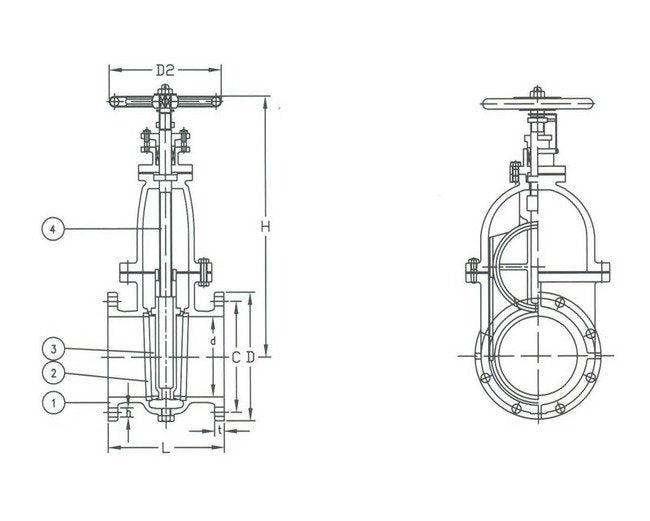

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
11.00 in | 279 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
26.75 in | 679 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
11.5 in | 292 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
8"
Specifications Stem Material
Stainless Steel
Specifications T
0.94 in | 24 mm
Specifications Weight
268 lb | 122 kg
