Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade

Name: Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade
Brand: World Wide Metric, Inc.
SKU: VAL-5f2a0d
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-5f2a0d

High-performance Class 150 Bronze Gate Valve with Non-Rising Stem for industrial use. Superior durability and ANSI compliant.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

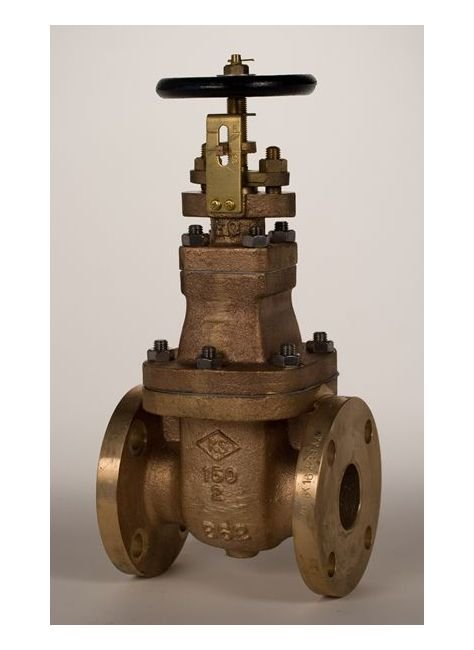

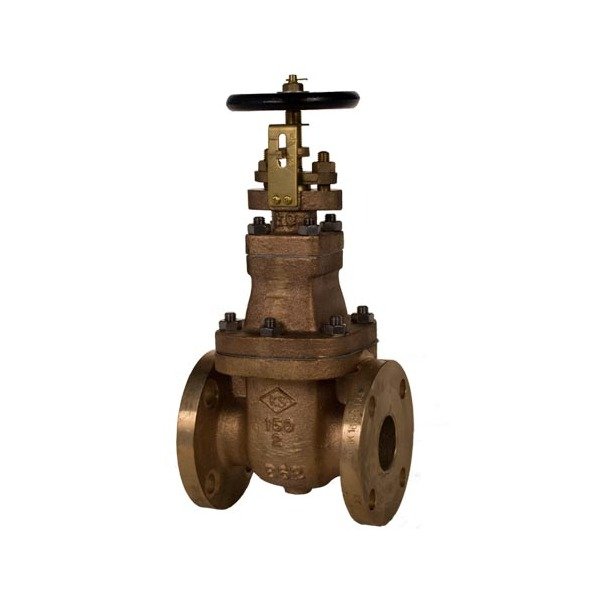

The Class 150 Bronze NRS Gate Valve with Bolted Bonnet and Non-Rising Stem is designed for heavy-duty industrial applications. Constructed from durable bronze with stainless steel components, this valve ensures superior performance and longevity. Meeting ANSI standards for Gate Valves, it offers reliable control over fluid flow, with hydraulic inspections rated at 350 PSIG for the shell and 225 PSIG for the seat. With precision engineering and a handwheel actuator, this valve guarantees smooth operation and long-term efficiency.

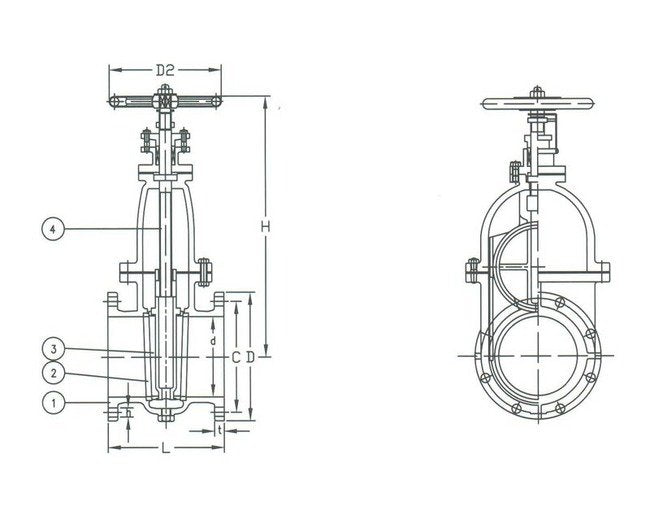

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

14 1/4 in | 362 mm

Specifications Connection

Flanged Drilled

Specifications D

16.00 in | 406 mm

Specifications D2

14.00 in | 356 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

31.50 in | 800 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications L

13.00 in | 330 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

10"

Specifications Stem Material

Stainless Steel

Specifications T

1.00 in | 25 mm

Specifications Weight

420 lb | 191 kg
