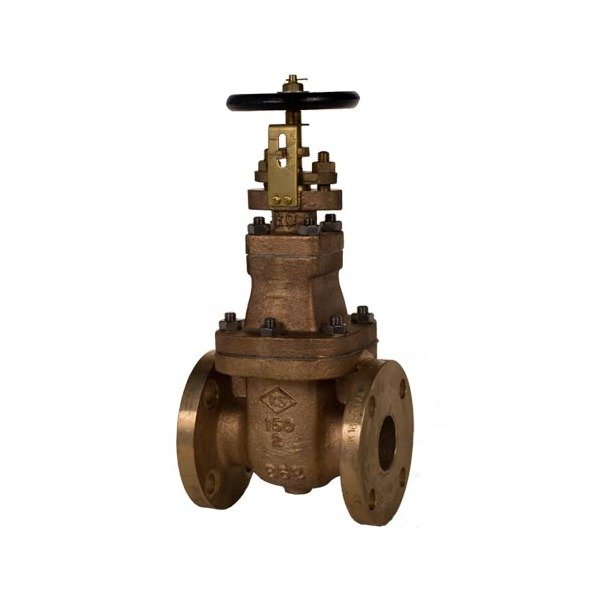

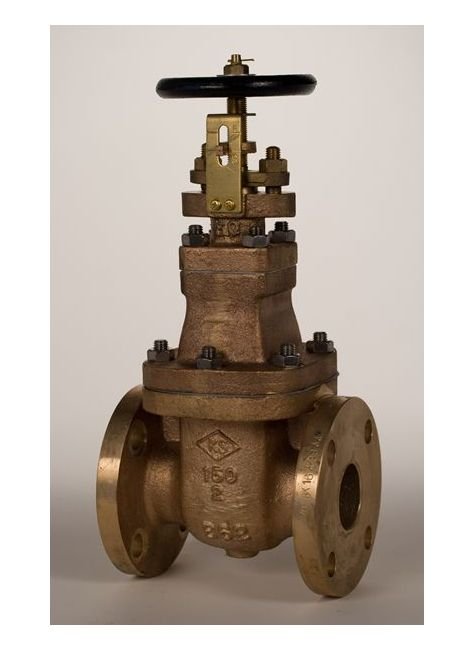

Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade
Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade
SKU:VAL-147d22
High-performance Class 150 Bronze NRS Gate Valve designed for institutional precision.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade
$499.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve, Non-Rising Stem - Institutional Grade
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze NRS Gate Valve with a bolted bonnet and non-rising stem is expertly crafted with precision engineering in mind. Its bronze body and brass seat ensure durability, while the option for stainless steel in critical areas enhances longevity. This valve complies with ANSI standards for accurate and reliable performance, making it ideal for government and institutional applications where quality and compliance are paramount.

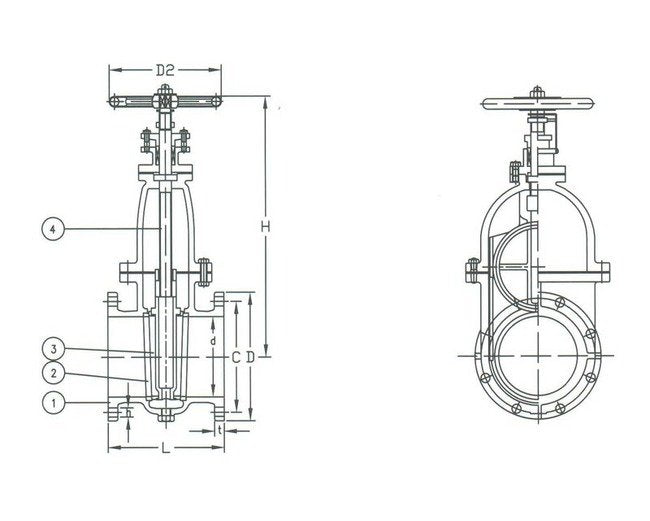

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
7.88 in | 200 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
19.50 in | 495 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
10 in | 254 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
5"
Specifications Stem Material
Brass
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
