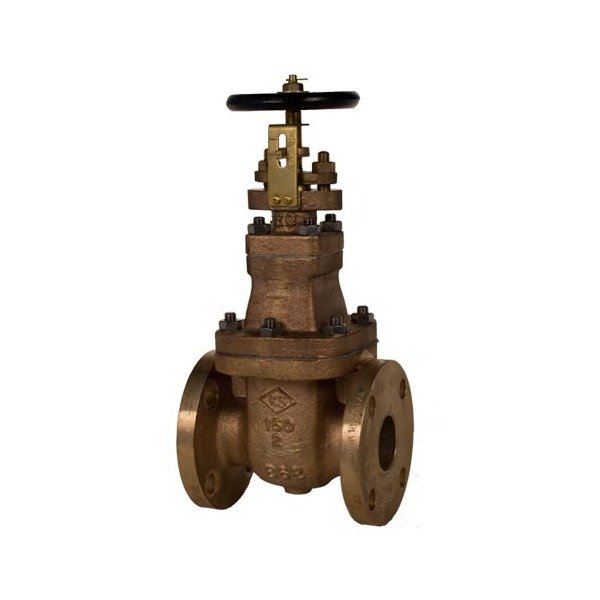

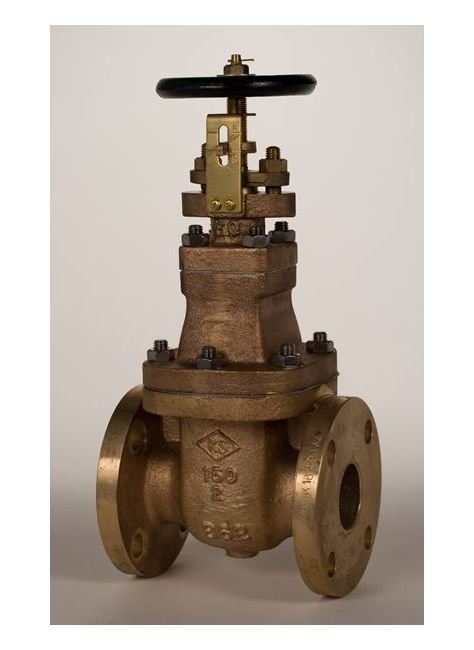

Class 150 Bronze NRS Gate Valve with Bolted Bonnet

Name: Class 150 Bronze NRS Gate Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-b6e16d
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-b6e16d

Class 150 Bronze NRS Gate Valve for industrial applications. Durable, reliable, and compliant with ANSI standards.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150 Bronze NRS Gate Valve with a Bolted Bonnet and Non-Rising Stem is a reliable industrial valve suitable for a wide range of applications. Constructed with high-quality Bronze body and Brass seat materials, this valve ensures durability and longevity. The disc ring is available in both Bronze and Stainless Steel options, offering versatility. With ANSI B16.10 face-to-face dimensions and ANSI B16.24 Class 150 flanges, this valve guarantees seamless integration into existing systems, meeting institutional procurement standards with ease.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications Connection

Flanged Drilled

Specifications Disc Material

Bronze | Stainless Steel

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications Seat Material

Brass

Specifications Size

1/2"

Specifications Stem Material

Brass

Class 150 Bronze NRS Gate Valve with Bolted Bonnet
