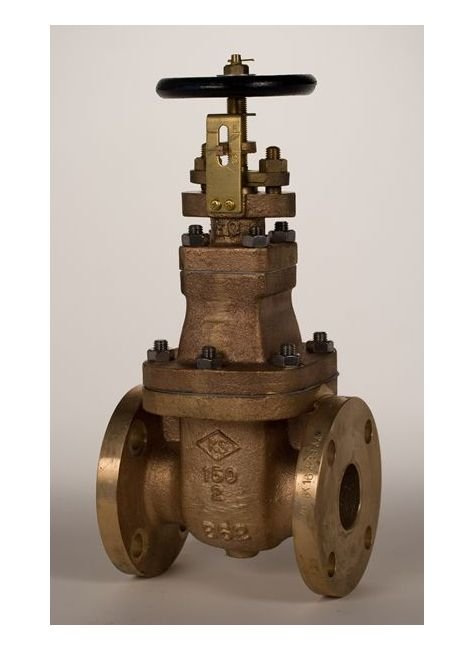

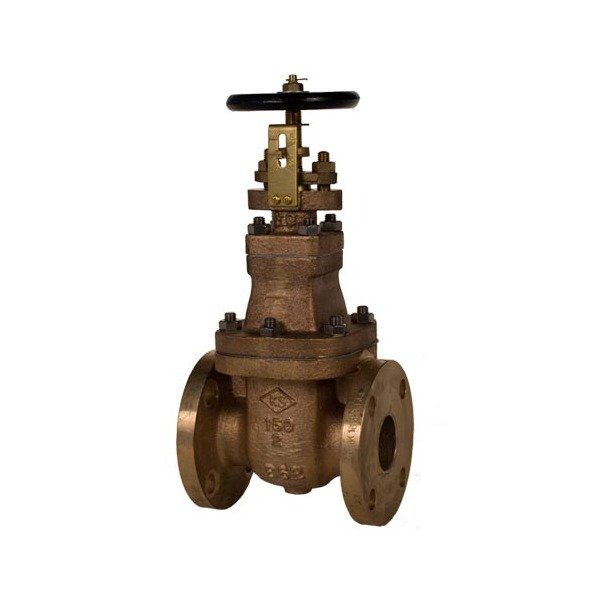

Class 150 Bronze NRS Gate Valve with Bolted Bonnet
Class 150 Bronze NRS Gate Valve with Bolted Bonnet
SKU:VAL-5e6bd6
Durable Class 150 Bronze NRS Gate Valve with Bolted Bonnet - Non Rising Stem for precise flow control in institutional applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 150 Bronze NRS Gate Valve with Bolted Bonnet
$289.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze NRS Gate Valve with Bolted Bonnet
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze NRS Gate Valve with Bolted Bonnet features a durable Bronze body, Stainless Steel seat, and options for Bronze or Stainless Steel disc material, offering reliability and longevity in fluid control applications. With a non-rising stem design, this valve ensures efficient flow regulation and is designed to meet ANSI B16.10 face-to-face and ANSI B16.24 Class 150 flange standards. Suitable for diverse industrial and institutional settings, this valve is tested for hydraulic pressure up to 350 PSIG (Shell) and 225 PSIG (Seat), providing dependable performance under varying operating conditions.
Ready to Grow Without Cash Flow Constraints?

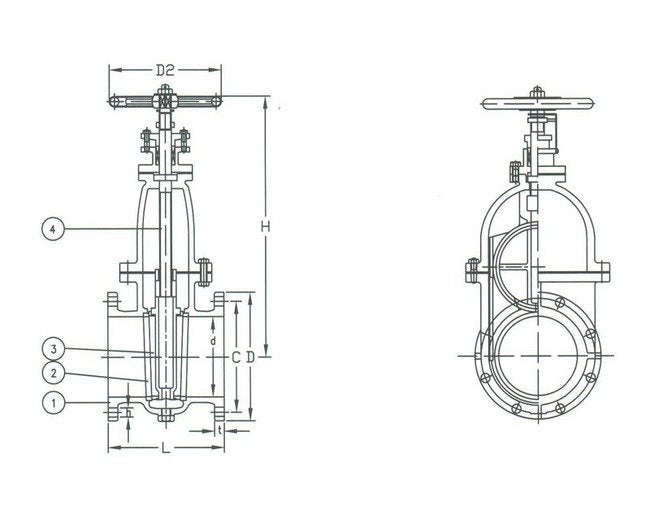

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
5.00 in | 127 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.25 in | 286 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.00 in | 178 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
2"
Specifications Stem Material
Stainless Steel
Specifications T
0.50 in | 13 mm
Specifications Weight
32 lb | 15.0 kg
